MAF Sensor/IAT Sensor 1 Replacement

  1. Disconnect the MAF sensor/IAT sensor 1 connector (A).

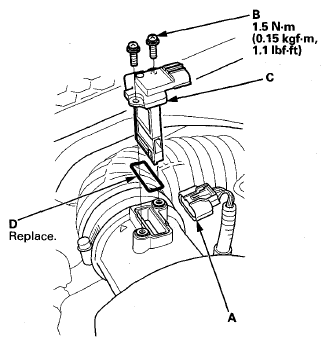

    Fig 1: MAF Sensor/IAT Sensor 1, Connector And Screws With Torque Specifications
    G08059496Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B).
  3. Remove MAF sensor/IAT sensor 1 (C).
  4. Install the parts in the reverse order of removal with a new gasket (D).
