MAP Sensor Replacement

  1. Disconnect the MAP sensor connector (A).

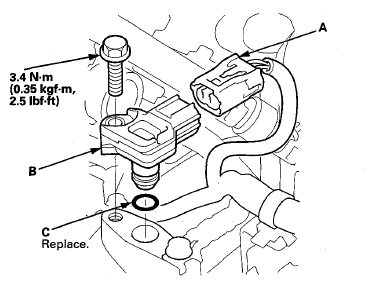

    Fig 1: MAP Sensor, Connector, O-Ring And Mounting Bolts With Torque Specifications
    G08059495Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the MAP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
