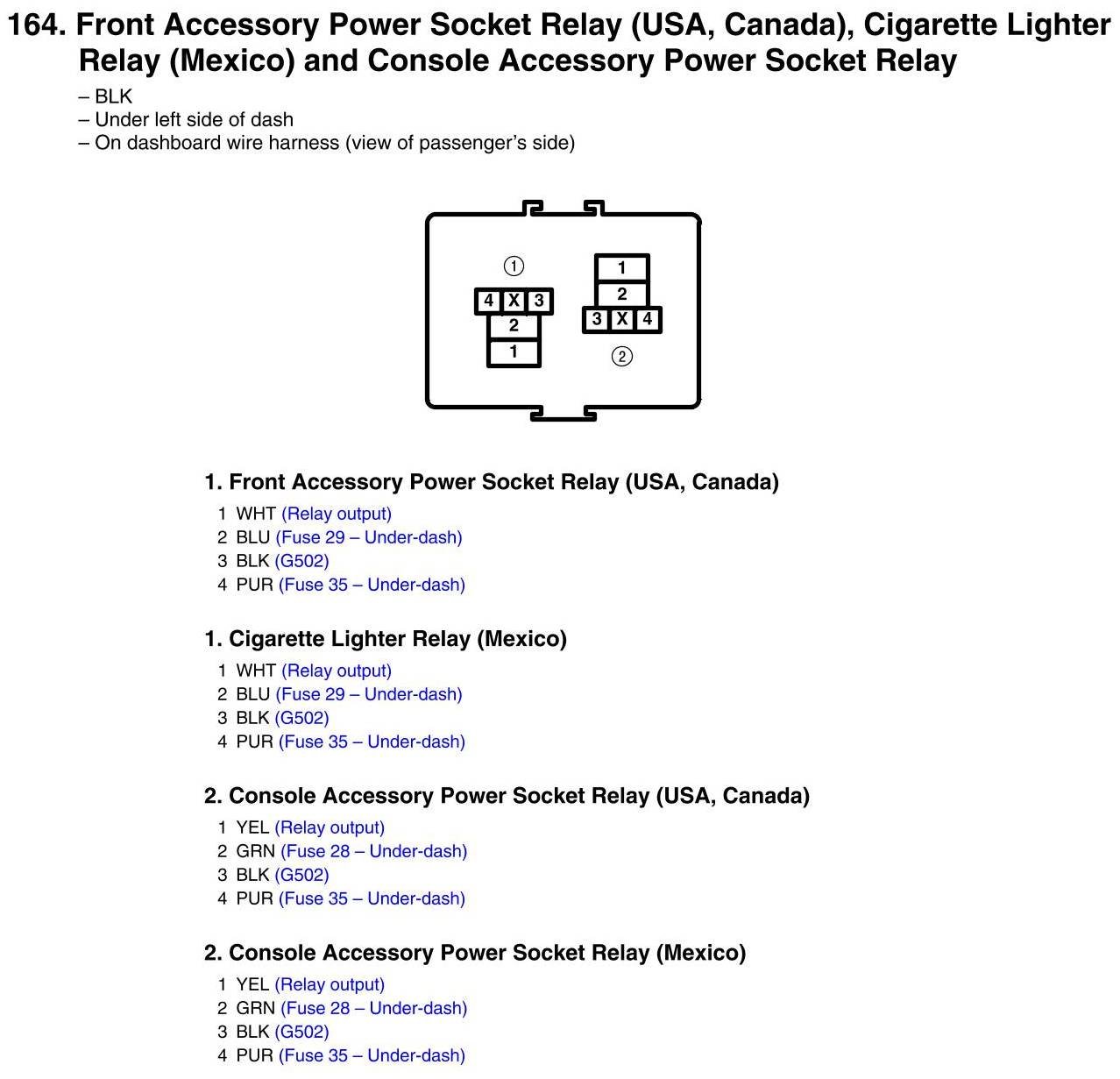

View 164 - Front Accessory Power Socket Relay, Cigarette Lighter Relay And Console Accessory Power Socket Relay Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
View 164 - Front Accessory Power Socket Relay, Cigarette Lighter Relay And Console Accessory Power Socket Relay Connector View
