View 298 - AcuraLink Control Unit (XM Receiver) Connector View (Technology Package: USA)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

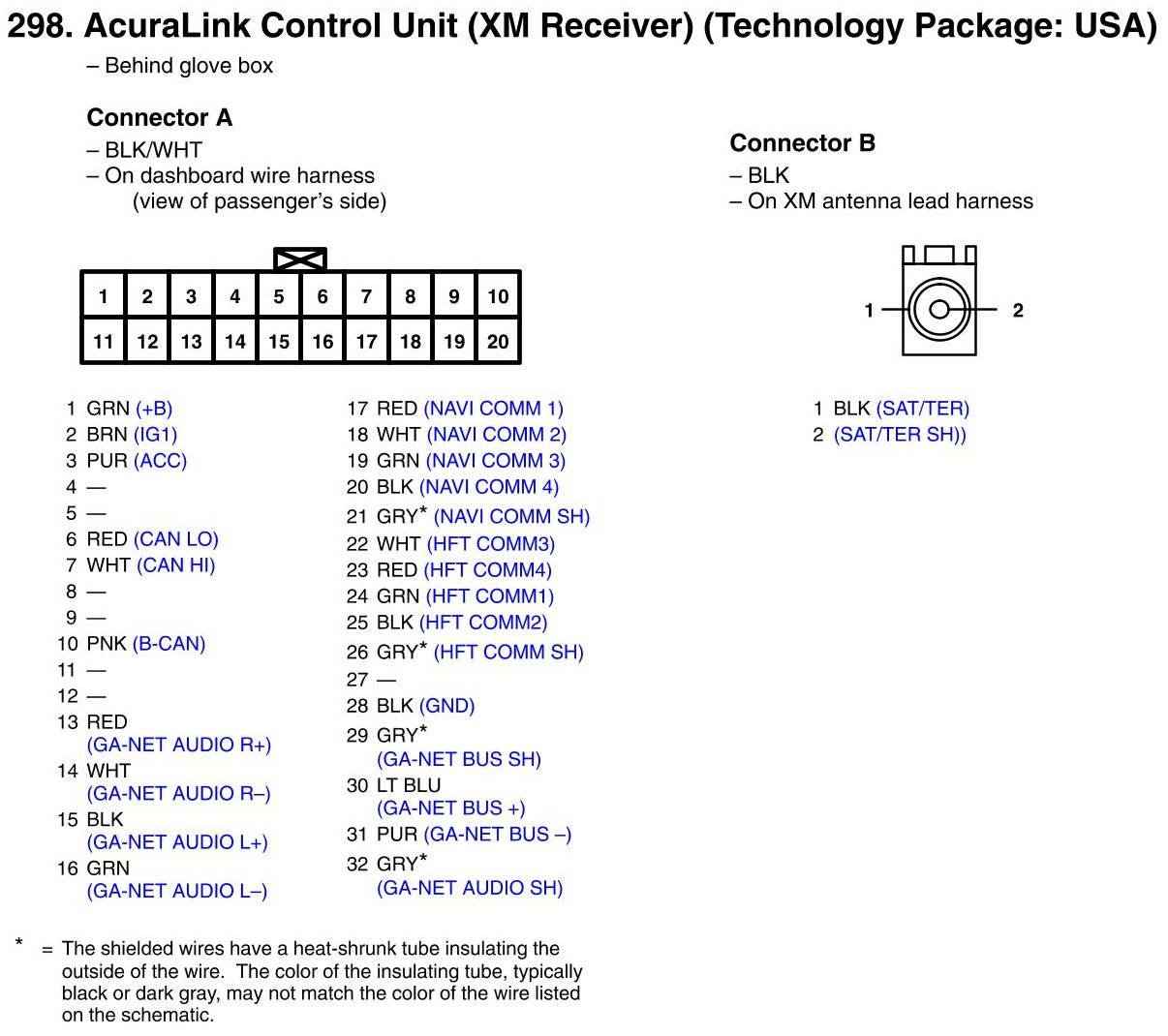

View 298 - AcuraLink Control Unit (XM Receiver) Connector View (Technology Package: USA)
