Audio-HVAC Display Unit Removal/Installation

Audio-HVAC Display Unit Removal/Installation

With premium audio system

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the center panel trim Dashboard Center Panel Removal/Installation.

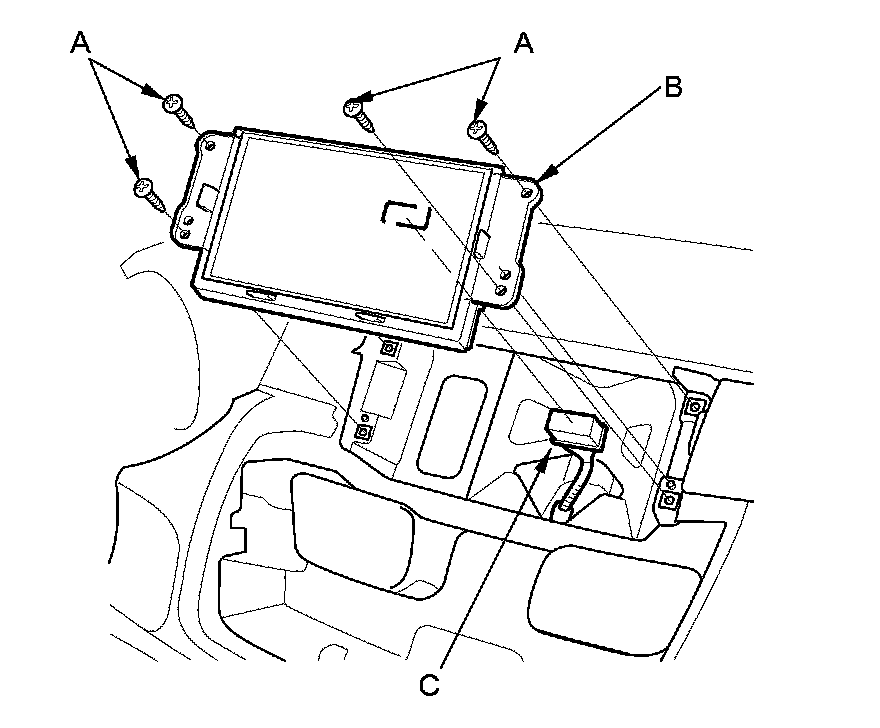

2. Remove the screws (A), then pull out the audio-HVAC display unit (B).





3. Disconnect the connector (C) and remove the audio-HVAC display unit.

4. Install the audio-HVAC display unit in the reverse order of removal.
