Torque Specifications




Torque Specifications

Engine Mechanical

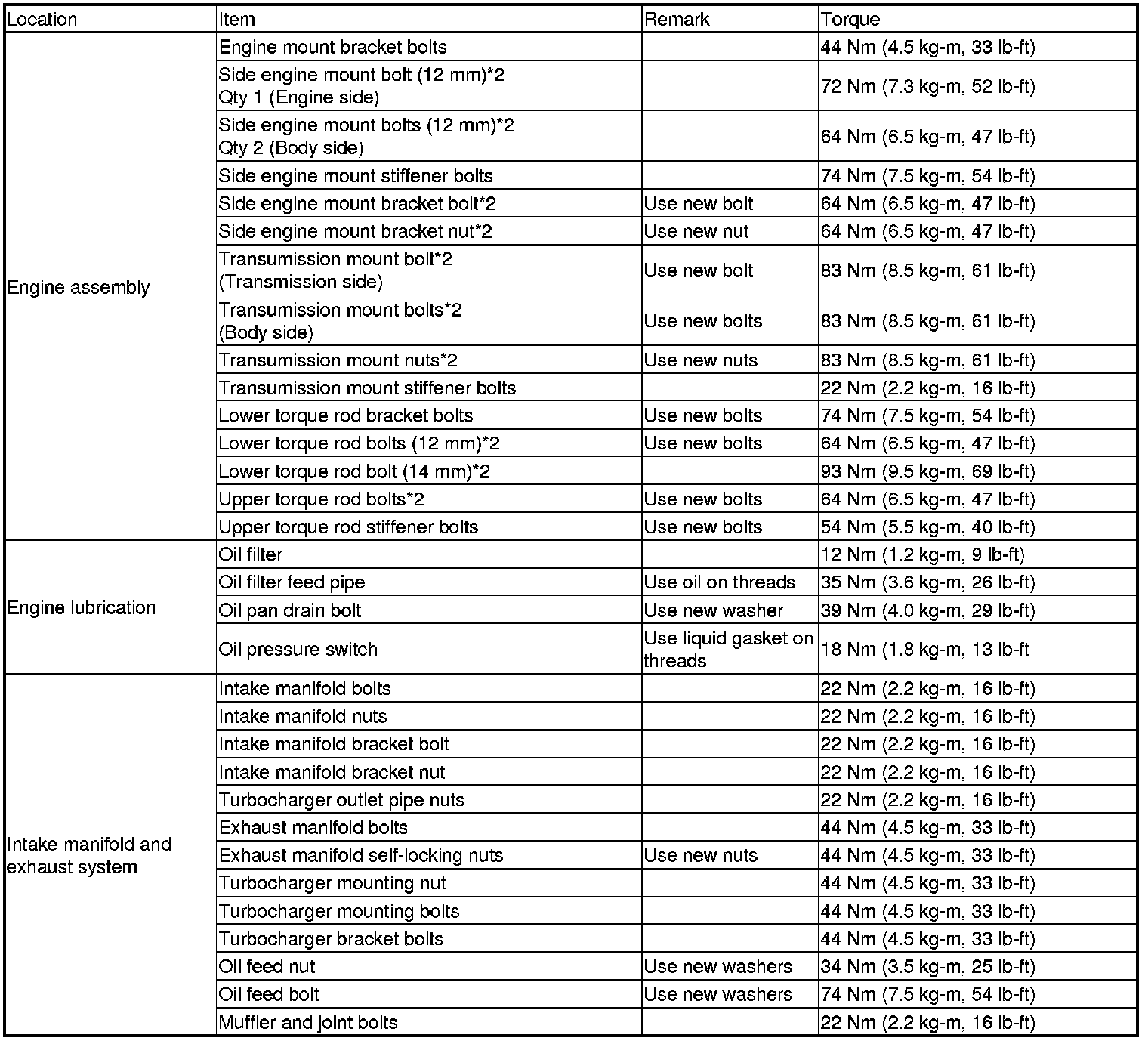

Torque Specifications

NOTE
Refer to the Data for the precautions and complete procedures.
Refer to the Data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the Data closely for torque, sequence, and special steps.
