Adaptive Front Lighting Control Unit Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package;)

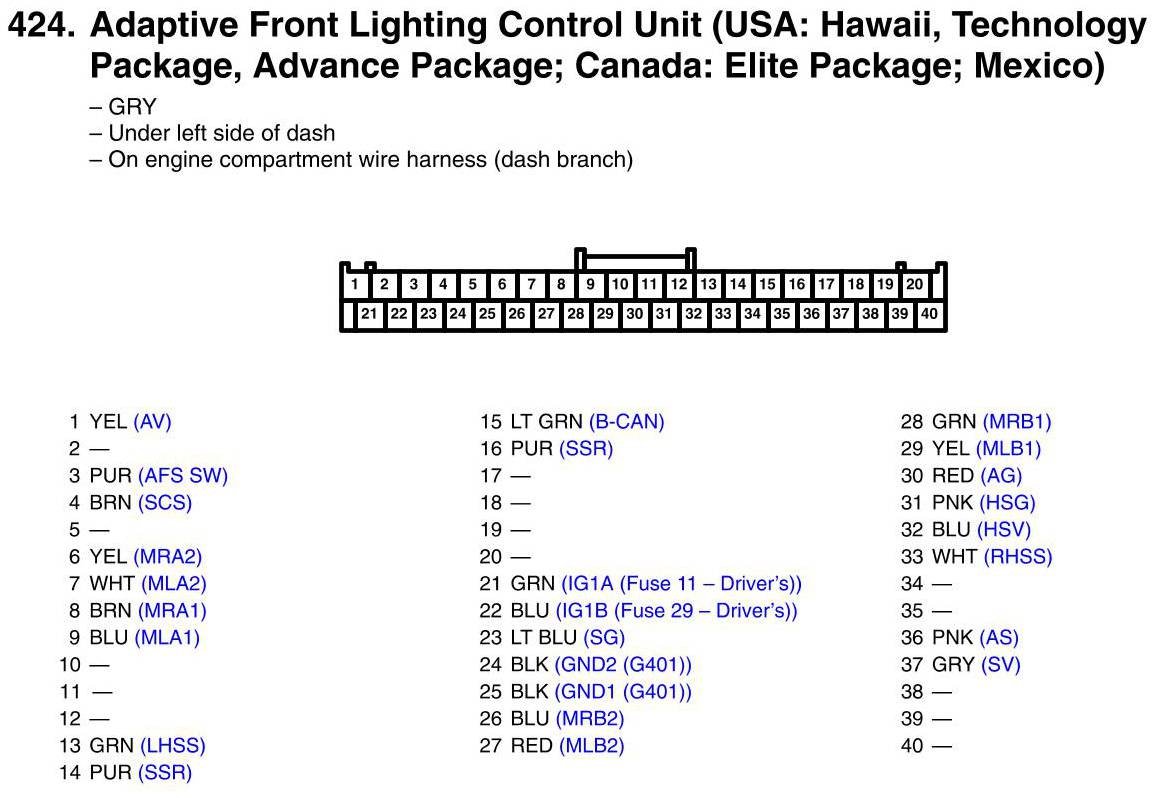

View 424 - Adaptive Front Lighting Control Unit Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
