AcuraLink Control Unit (XM Receiver) Connector View (USA: Technology Package, Advance Package)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

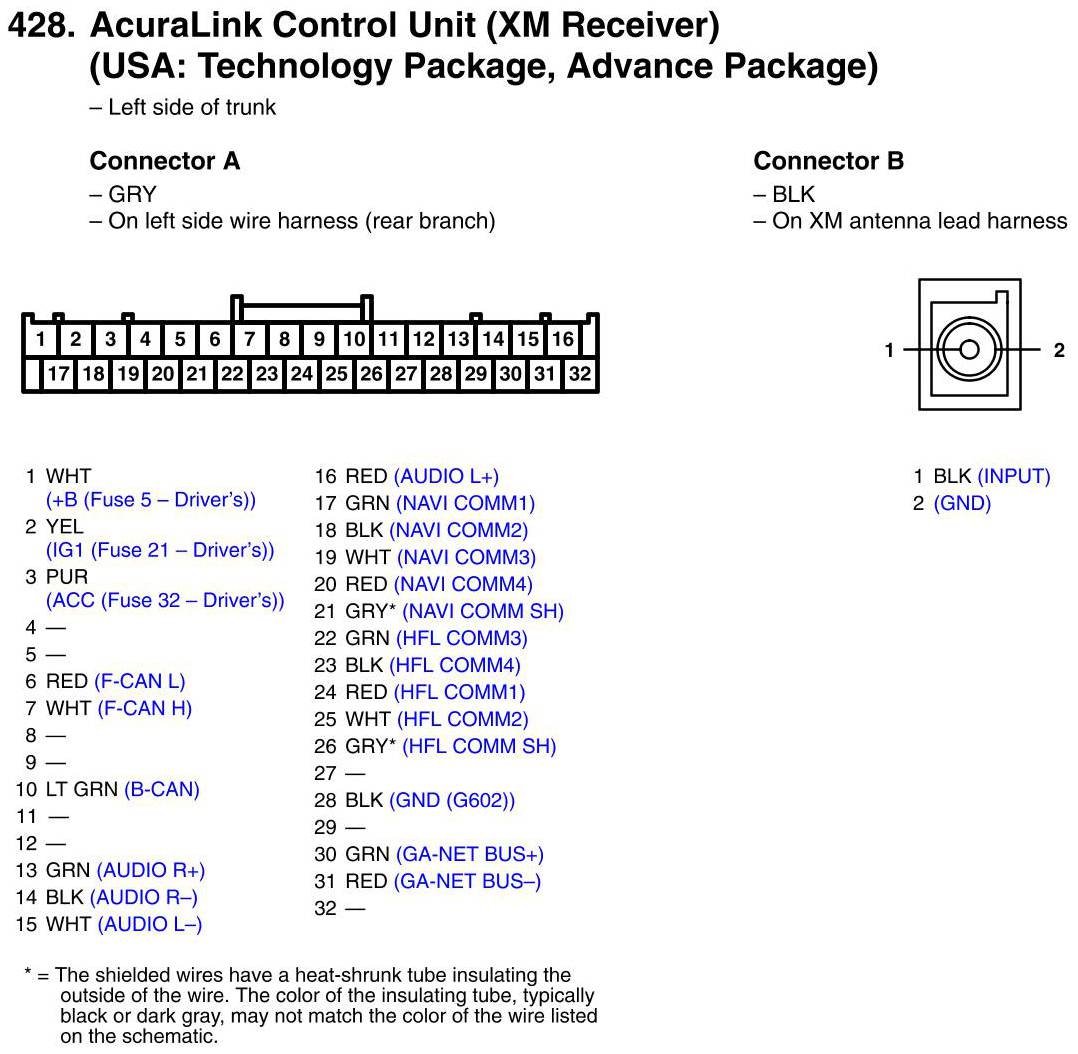

AcuraLink Control Unit (XM Receiver) Connector View (USA: Technology Package, Advance Package)
