Fuel Pump/Fuel Gauge Sending Unit Replacement

Fuel Pump/Fuel Gauge Sending Unit Replacement

1. Remove the fuel tank unit Fuel Tank Unit Removal/Installation.

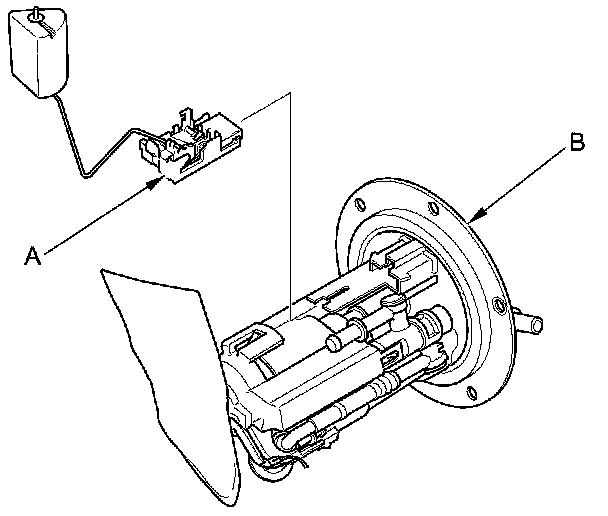

2. Remove the fuel level sensor (fuel sending unit) (A) from the fuel tank unit (B).





3. Install the fuel gauge sending unit in the reverse order of removal.

NOTE: Make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.

4. Install the fuel tank unit Fuel Tank Unit Removal/Installation.
