Tightening Specifications

Rear Differential Oil Pump Assembly Bolts, 12 N-m (1.2 kgf-m, 8.7 lbf-ft)

Rear Differential Center Case Bolts, 27 N-m (2.8 kgf-m, 20 lbf-ft)
Tighten in a crisscross pattern in several steps

Rear Differential Carrier Cover Bolts, 27 N-m (2.8 kgf-m, 20 lbf-ft)
Tighten in a crisscross pattern in several steps

Rear Differential Companion Flange Holder 22 mm Locknut, 118 Nm (12.0 kg-m, 87 lb-ft)

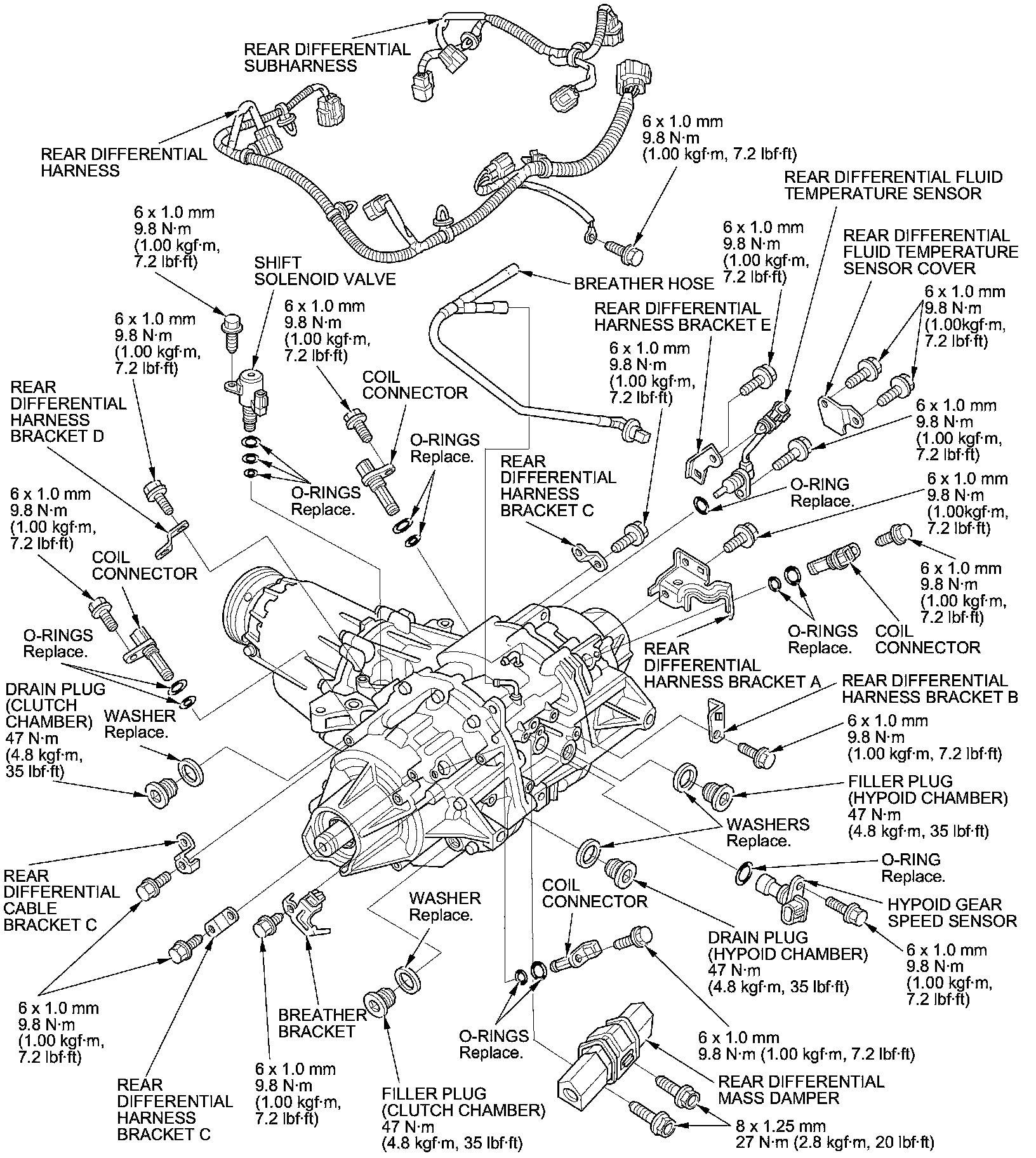

Rear Differential Component Tightening Specifications





Rear Differential Installation Tightening Specifications
