Horizontal Aiming: Notes

  1. Park the vehicle on level ground with at least this much open space around it: 32.8 ft (10 m) in front, 13.1 ft (4 m) in width, and 4.9 ft (1.5 m) in height.

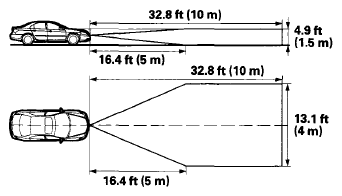

    Fig 1: Millimeter Wave Radar Horizontal Aiming
    G07364551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Make sure there are no reflecting objects or anything in this range.
  3. Check the tire pressures, and adjust the pressures to the specified value if need.
  4. Put a person or an object equivalent to the driver's weight in the driver's seat.
