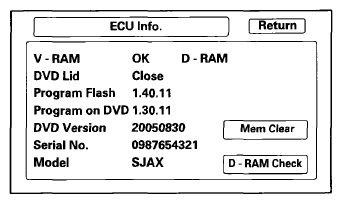

ECU Info
This screen looks for problems in the navigation unit. When you initiate this diagnosis, the navigation unit may freeze or delay up to a minute while the diagnosis runs.
NOTE:
Do not try to end this diagnostic by pressing OK or Mem clear before it finishes, otherwise the system may reboot.
- If V-RAM or D-RAM is NG, replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION ).
- DVD lid displays the state of DVD Lid of navigation unit.
- Program Flash: Displays the version of the navigation software in memory.
- Program on DVD: If displayed, this value represents the version of the navigation software on the navigation DVD.
- DVD version represents the database version on the DVD. You can find this information in either the Setup Screen Version, or in the Diagnostic Screen Version.
- Serial No. should be the same as the serial number found on the underside of the navigation unit. You need this number to obtain the security code from the Interactive Network (iN) system.
- The Mem CIr is for factory use and should not be used unless instructed by the factory.
Selecting this will clear the client's settings, personal information, GPS orbital data, and anything else stored in memory.
