Audio Unit Connector A Connector End View (View 429)

Behind audio unit
Connector A
- LT BLU
- On dashboard wire harness (center branch)

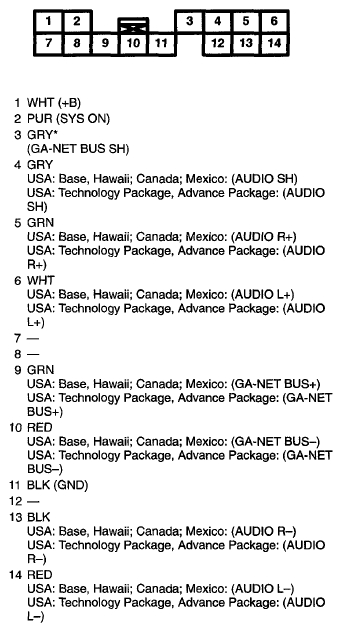

  Fig 1: Audio Unit Connector A Terminals (View 429)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector B
- GRY
- On dashboard wire harness (center branch)

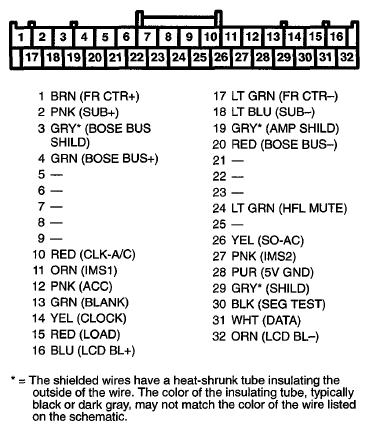

  Fig 2: Audio Unit Connector B Terminals (View 429)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector C
- WHT
- On dashboard wire harness (center branch)

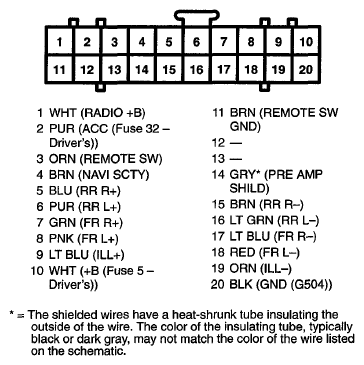

  Fig 3: Audio Unit Connector C Terminals (View 429)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector D
- WHT
- On dashboard wire harness (center branch)

  Fig 4: Audio Unit Connector D Terminals (View 429)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector E
- GRY
- On antenna sub-harness

  Fig 5: Audio Unit Connector E Terminals (View 429)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
