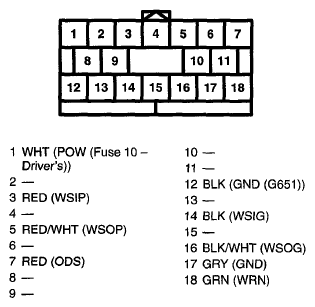

ODS Unit Connector A Connector End View (View 446)

Left side of front passenger's seat back
Connector A
- BLK/YEL
- To side element of sensor

  Fig 1: ODS Unit Connector A Terminals (View 446)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- BLK/YEL
- To lower element of sensor

  Fig 2: ODS Unit Connector B Terminals (View 446)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- BLK/YEL
- To upper element sensor

  Fig 3: ODS Unit Connector C Terminals (View 446)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- BLK
- On front passenger's seat wire harness

  Fig 4: ODS Unit Connector D Terminals (View 446)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
