Passenger's Under-Dash Fuse/Relay Box Connector A Connector End View (View 447)

Behind right kick panel
Connector A
- BLK
- On engine compartment wire harness (right branch)

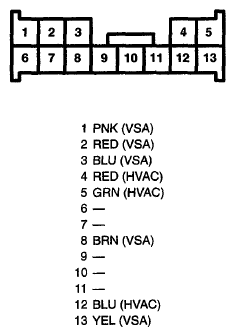

  Fig 1: Passenger's Under-Dash Fuse/Relay Box Connector A Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- LT GRN
- On engine compartment wire harness (right branch)

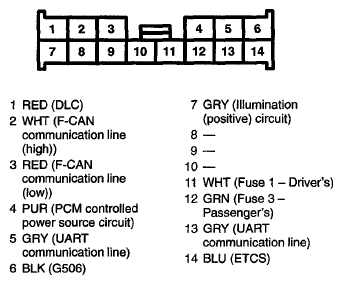

  Fig 2: Passenger's Under-Dash Fuse/Relay Box Connector B Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- LT GRN
- On right side wire harness (front branch)

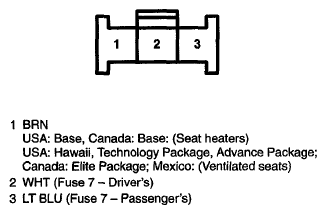

  Fig 3: Passenger's Under-Dash Fuse/Relay Box Connector C Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- LT GRN
- On dashboard wire harness (right branch)

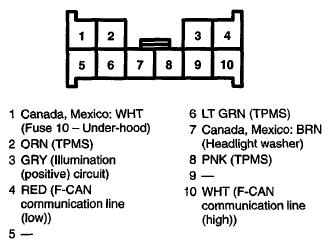

  Fig 4: Passenger's Under-Dash Fuse/Relay Box Connector D Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- LT GRN
- On dashboard wire harness (right branch)

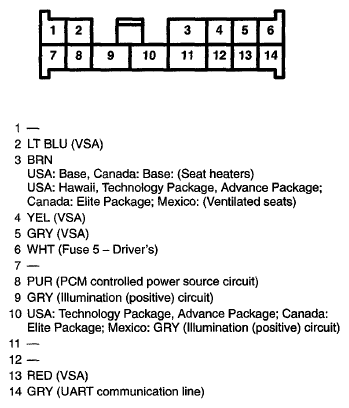

  Fig 5: Passenger's Under-Dash Fuse/Relay Box Connector E Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F
- LT GRN
- On right side wire harness (front branch)

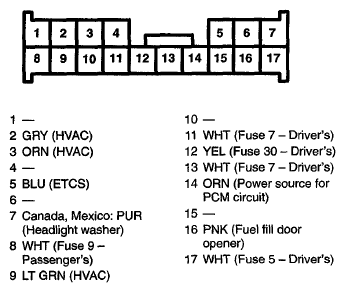

  Fig 6: Passenger's Under-Dash Fuse/Relay Box Connector F Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector G
- LT GRN
- On right side wire harness (front branch)

  Fig 7: Passenger's Under-Dash Fuse/Relay Box Connector G Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H
- LT GRN
- On dashboard wire harness (right branch)

  Fig 8: Passenger's Under-Dash Fuse/Relay Box Connector H Terminals (View 447)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector J
- LT GRN
- On engine compartment wire harness (right branch)

  Fig 9: Passenger's Under-Dash Fuse/Relay Box Connector J Terminals (View 447)
