Power Telescopic Motor/Position Sensor Connector End View (View 295)
WHT
Under steering column cover
On dashboard wire harness (around the steering column)

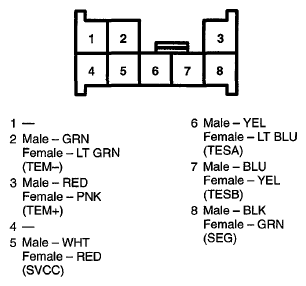

Fig 1: Power Telescopic Motor/Position Sensor Connector Terminals (View 295)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
