Voice Control Switch Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS information before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the steering wheel rear cover (A) and the paddle shift switches (B).

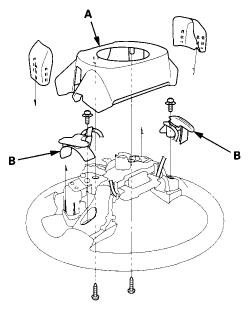

   Fig 1: Removing Steering Wheel Rear Cover And Paddle Shift Switches

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the voice control switch assembly (A).
   Fig 2: Removing Voice Control Switch Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the voice control switch in the reverse order of removal.
