Slide motor, Front up-down motor, Rear up-down motor

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the connector from each power seat motor.

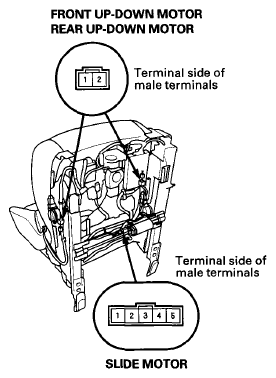

Fig 1: Disconnecting Connector From Power Seat Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

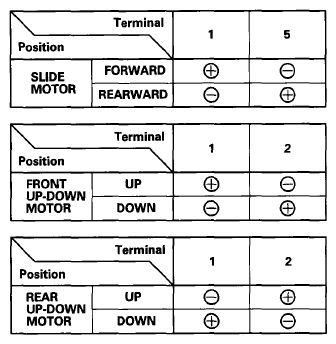

Fig 2: Terminals Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor (see FRONT SEAT UP-DOWN MOTOR REPLACEMENT )
- Rear up-down motor (see REAR UP-DOWN MOTOR - 8-WAY POWER SEAT ).
