Transmission Range Switch Connector End View (View 311)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Transmission Range Switch Connector End View (View 311)
BLK
Transmission housing
On engine wire harness (front branch)

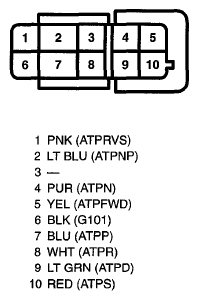

Fig 1: Transmission Range Switch Connector Terminals (View 311)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
