DRL Control Unit Connector End View (USA, Mexico) (View 375)

GRY
Under left side of dash
On engine compartment wire harness (dash branch)

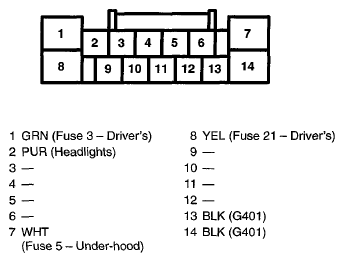

Fig 1: DRL Control Unit (USA, Mexico) Connector Terminals (View 375)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
