View 233 - Electric Steering Lock Control Unit Connector View (Keyless Access)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

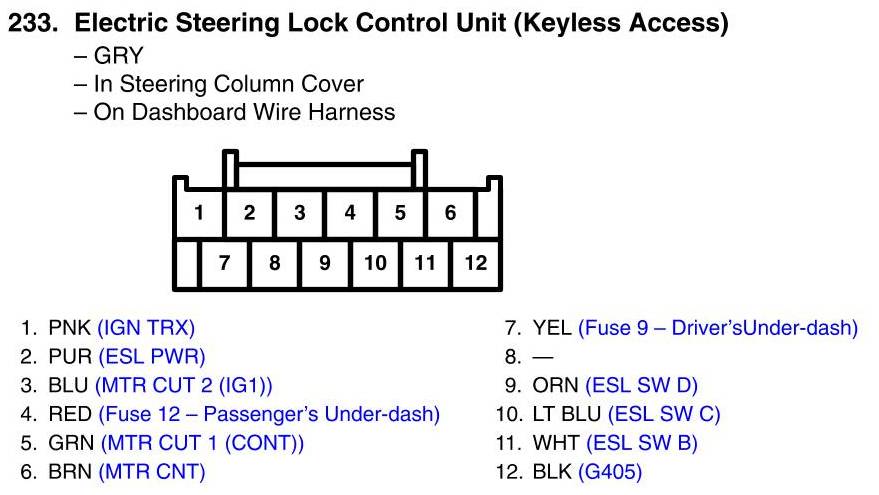

View 233 - Electric Steering Lock Control Unit Connector View (Keyless Access)
