Driving Position Memory Switch Test/Replacement
- Remove the driver's door panel (see
FRONT DOOR PANEL REMOVAL/INSTALLATION
)

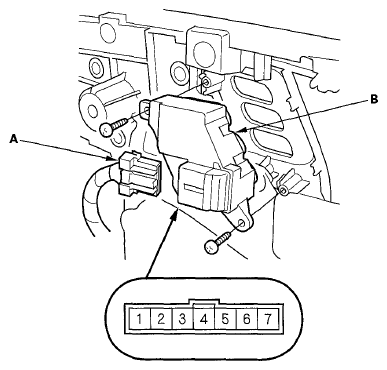

- Disconnect the 7P connector (A) from the driver's position memory switch (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two screws, then remove the switch from the door panel

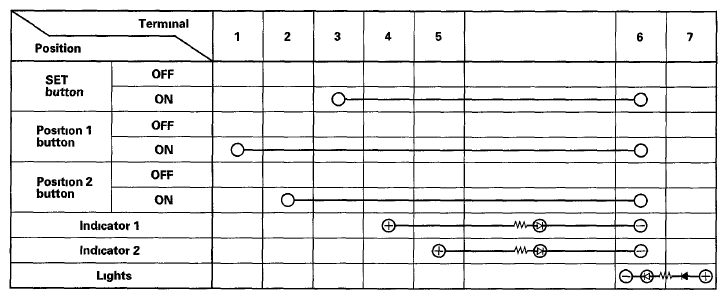

- Check for continuity between the terminals in each switch position according to the table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch
