Without SH-AWD

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the yaw rate-lateral acceleration sensor 4P connector (A), then remove the yaw rate-lateral acceleration sensor (B).

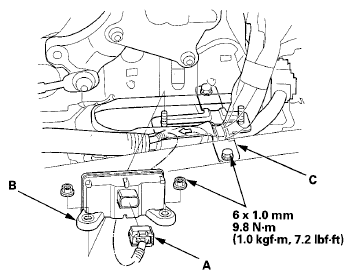

    Fig 1: Identifying Yaw Rate-Lateral Acceleration Sensor 4P Connector, Yaw Rate-Lateral Acceleration Sensor And Bracket
    G06680232Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for deformation in the bracket (C). If necessary replace it.
  5. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
