Intake Air Resonator Removal/Installation

  1. Remove the splash separator (A)
    Fig 1: Identifying Splash Separator
    G05990469Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION )
  3. Remove the air cleaner (see THROTTLE BODY CLEANING )
  4. Remove the battery base (A)
    Fig 2: Battery Base With Torque Specifications
    G05990470Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the intake air duct (A)
    Fig 3: Identifying Intake Air Duct
    G05990471Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION )
  7. Remove the intake air resonator (A)

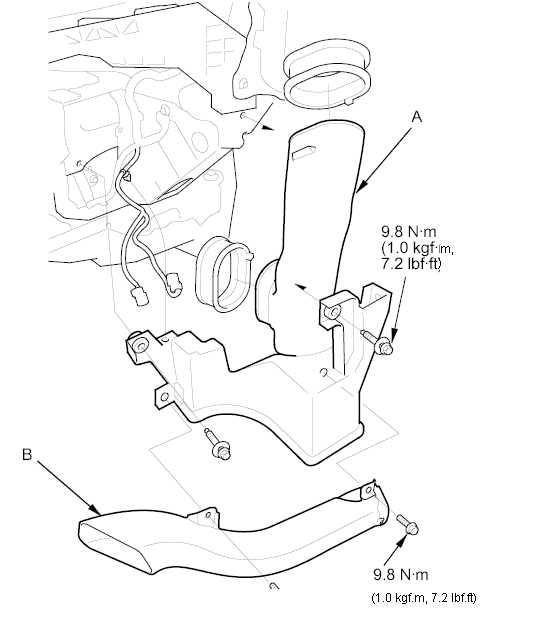

    Fig 4: Intake Air Resonator With Torque Specification
    G00492191Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. J37A4 engine: Remove the brake duct (B).
  9. Install the parts in the reverse order of removal
  10. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION )
