ECT Sensor 2 Replacement
- Remove the splash shield.
- Drain the engine coolant (see COOLANT REPLACEMENT
).

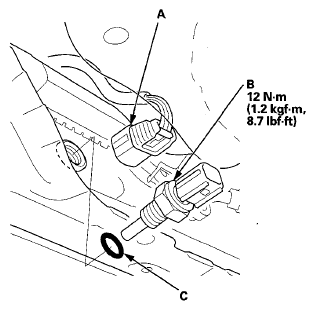

- Disconnect the ECT sensor 2 2P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove ECT sensor 2 (B).
- Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT REPLACEMENT
).
