MAP Sensor Replacement

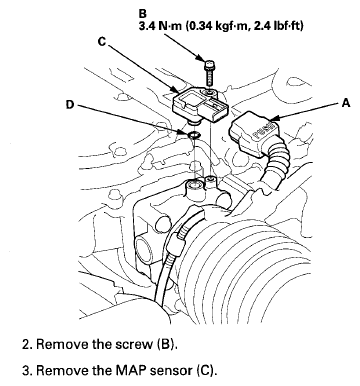

- Disconnect the MAP sensor connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the screw (B).
- Remove the MAP sensor (C).
- Install the parts in the reverse order of removal with a new O-ring (D).
