Component Location Index

WARNING: This page is about a different variant/trim than selected.

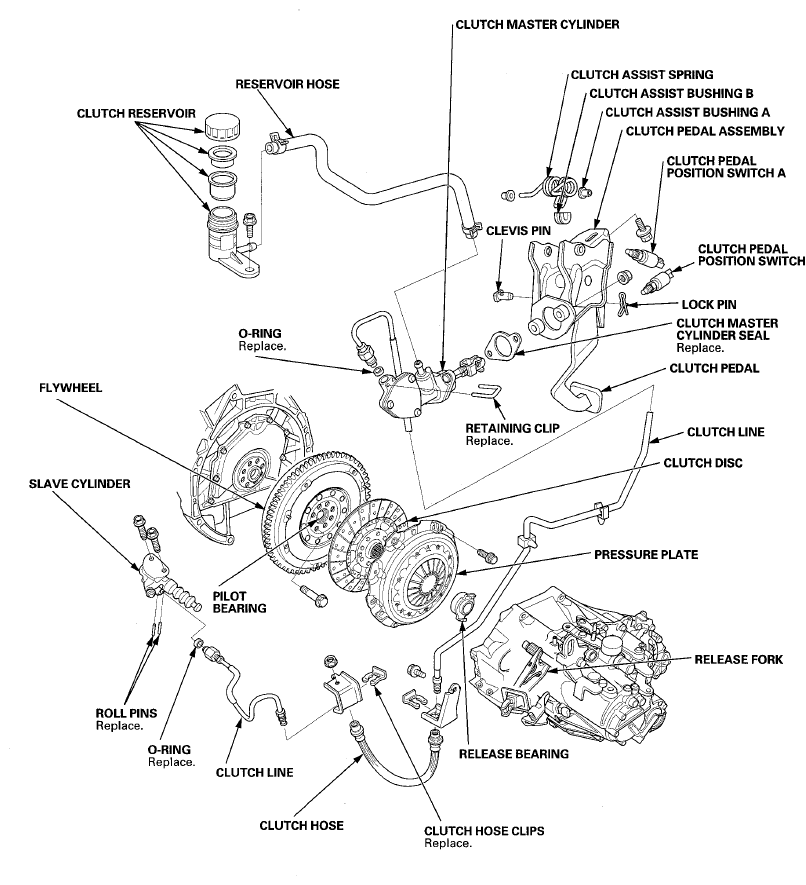

Fig 1: Identifying Clutch Component Location
G06679755Courtesy of AMERICAN HONDA MOTOR CO., INC.
