C451 Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

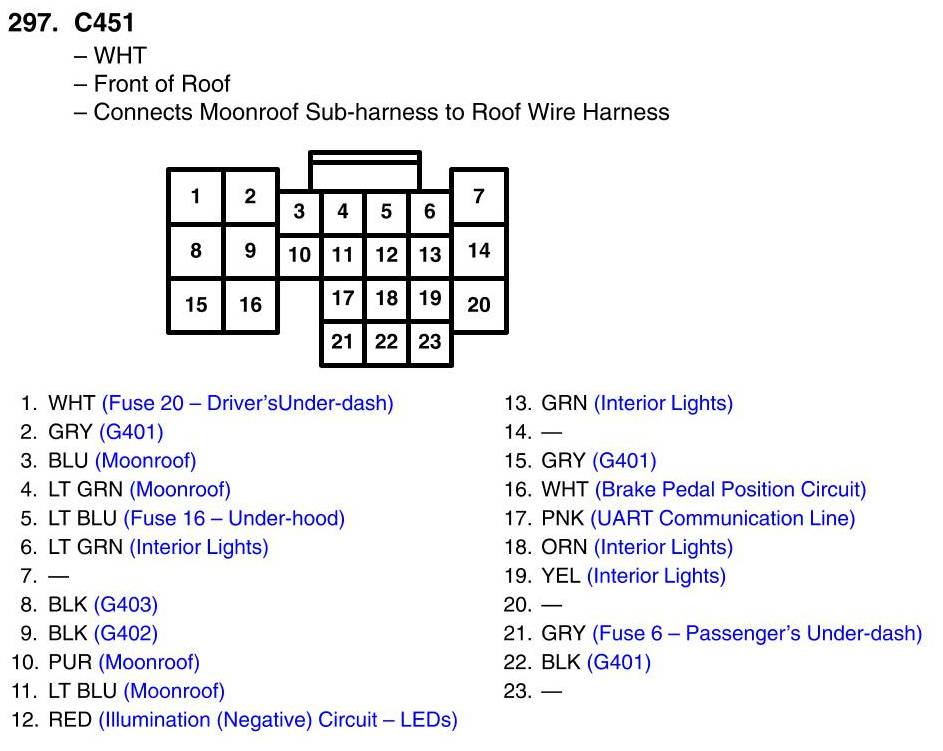

C451 Connector View
