Knock Sensor Subharness

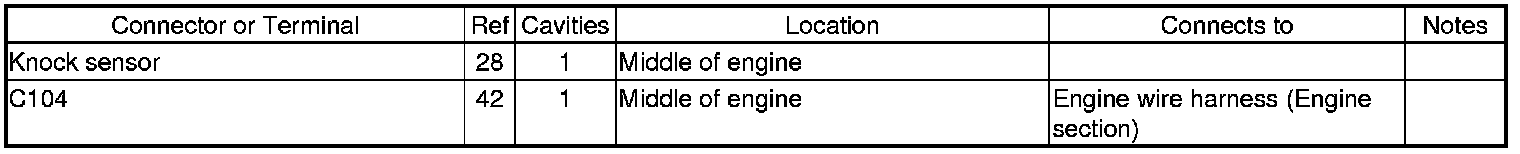

Connector and Harness Locations

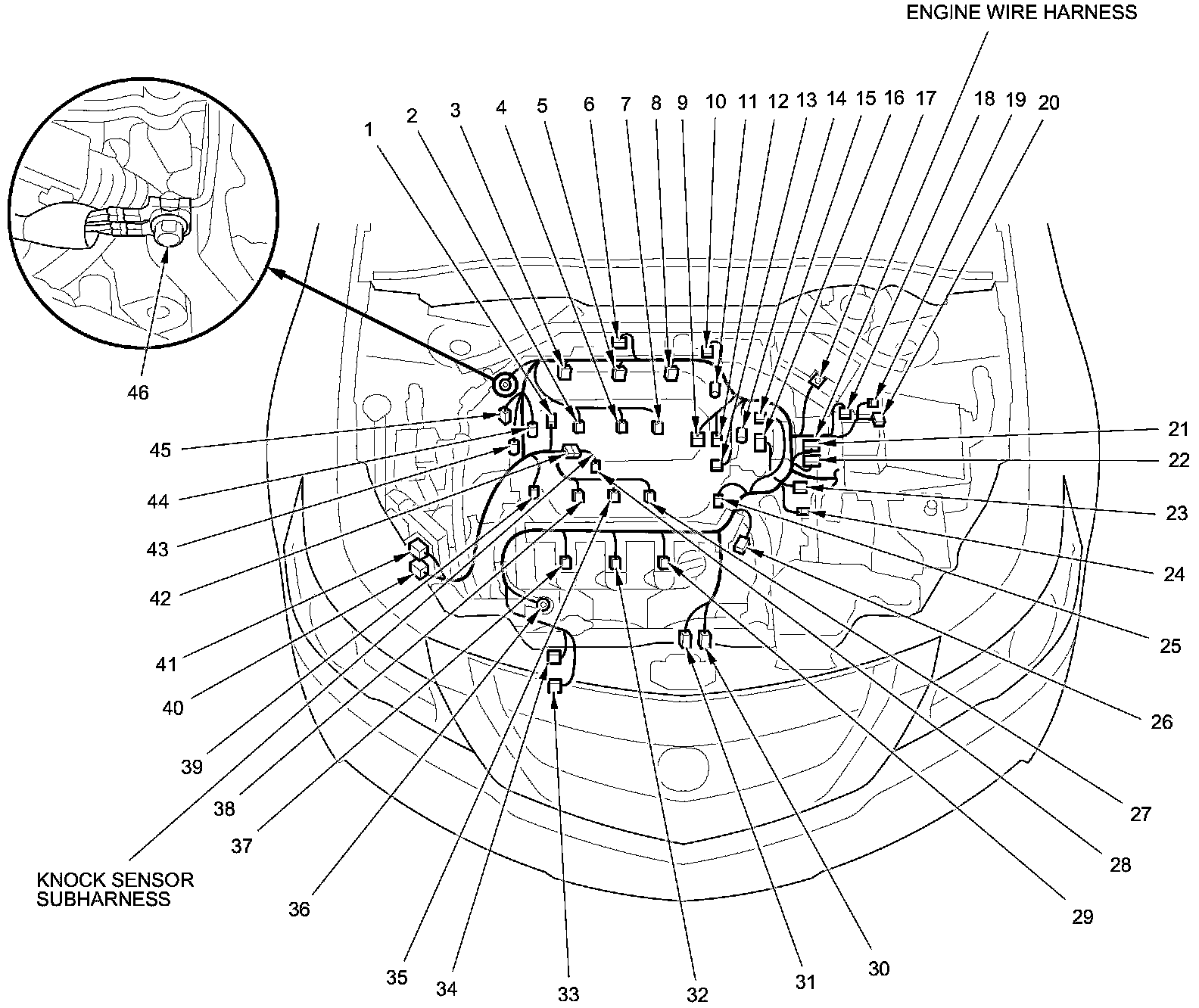

Knock Sensor Subharness (M/T)

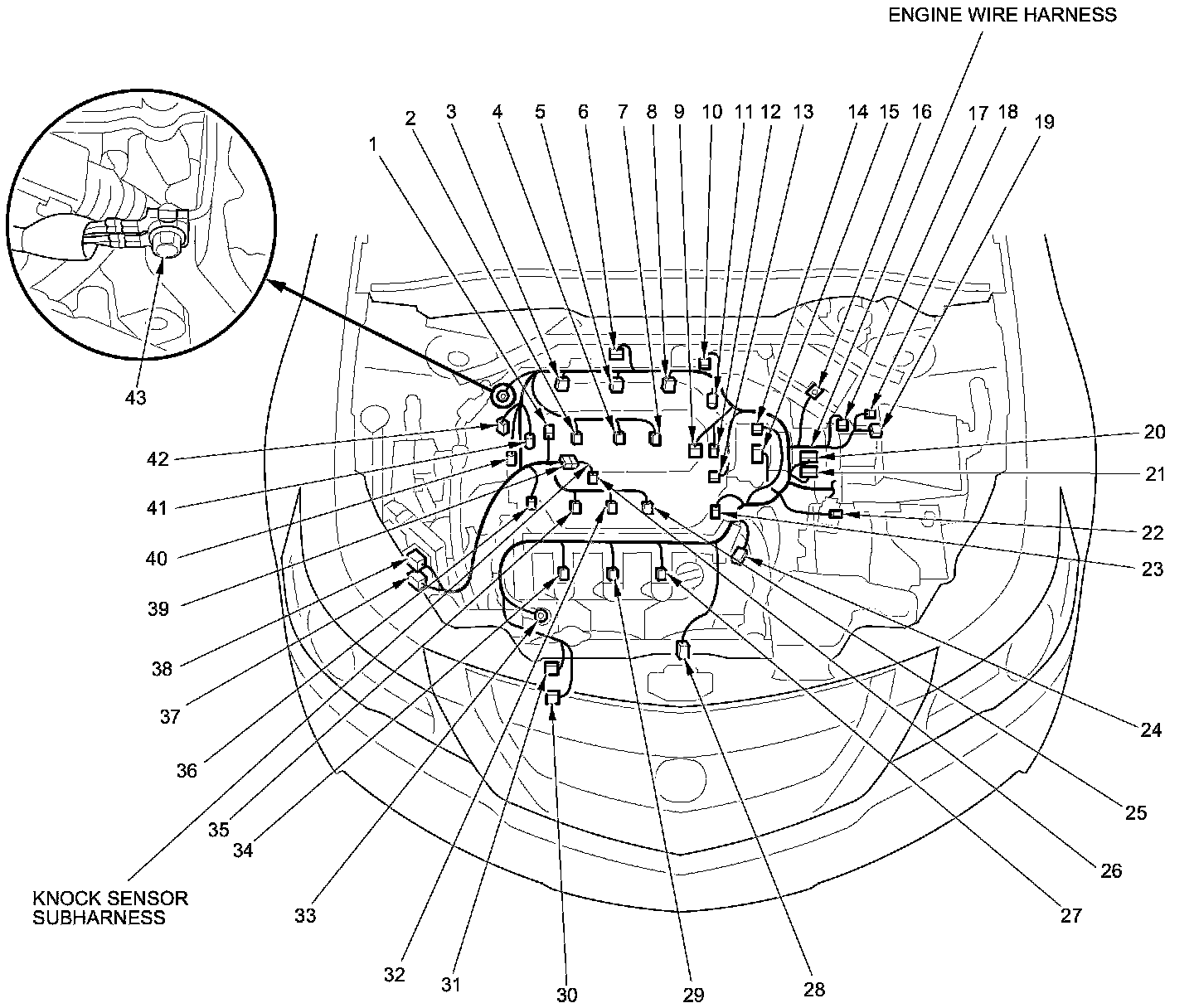

Knock Sensor Subharness (A/T)
