DTC P0705: Short in Transmission Range Switch Circuit (Multiple Shift-Position Input): Notes

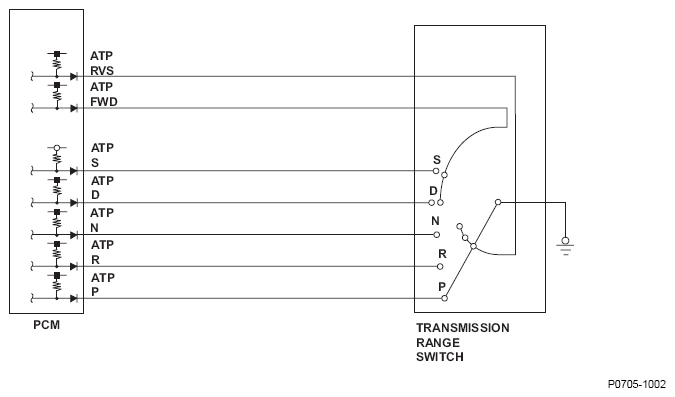

Fig 1: Transmission Range Switch - Circuit Diagram

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	ATPP	ATPR	ATP RVS	ATPN	ATPD	ATPS	ATP FWD
P	◦	X	X	X	X	X	X
R	X	◦	◦	X	X	X	X
N	X	X	X	◦	X	X	X
D	X	X	X	X	◦	X	◦
S	X	X	X	X	X	◦	◦
◦: Closed X: Open

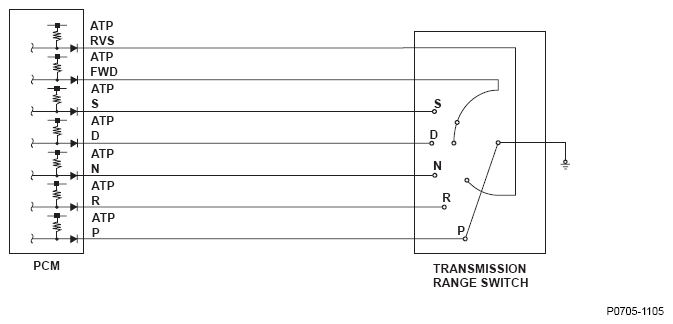

Fig 1: Transmission Range Switch - Circuit Diagram

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	ATPP	ATPR	ATPN	ATPD	ATPS	ATP FWD	ATP RVS
P	◦	X	X	X	X	X	◦
R	X	◦	X	X	X	X	◦
N	X	X	◦	X	X	X	◦
D	X	X	X	◦	X	◦	X
S	X	X	X	X	◦	◦	X
◦: Closed X: Open
