Audio-HVAC Display Unit Removal/Installation

Audio-HVAC Display Unit Removal/Installation

With Premium Audio

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the speaker cover Dashboard Speaker Cover Removal/Installation.

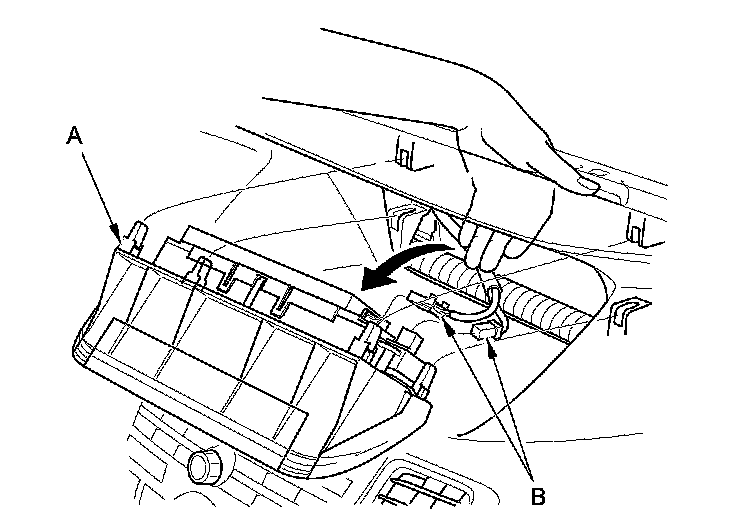

2. Carefully push out the audio-HVAC display unit (A).





3. Disconnect the connectors (B), and remove the audio-HVAC display unit.

4. Remove the passenger's airbag cutoff indicator Service and Repair from the audio-HVAC display unit.

5. Install the audio-HVAC display unit in the reverse order of removal.
