Fuse to Components Index




Fuse to Components Index

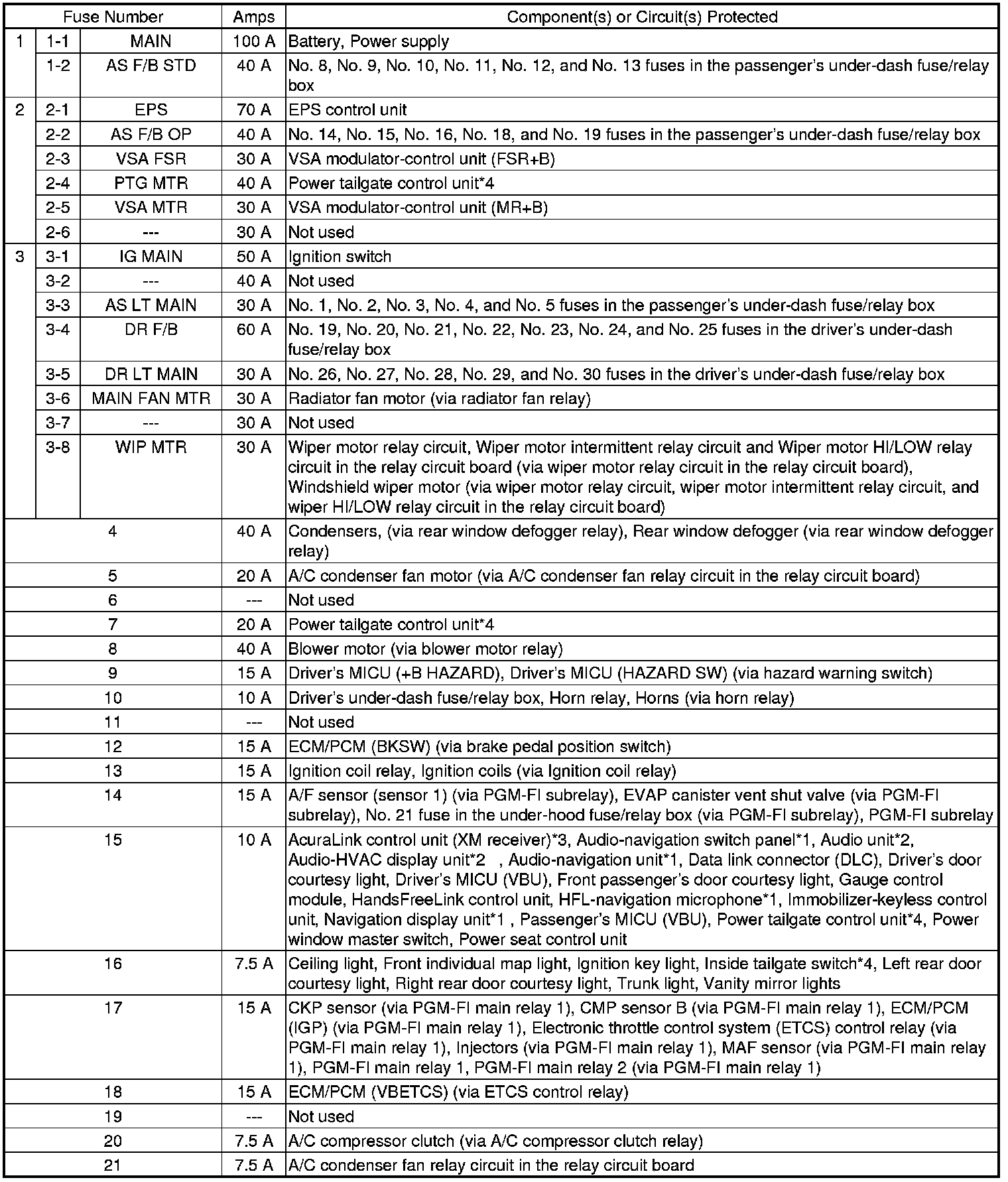

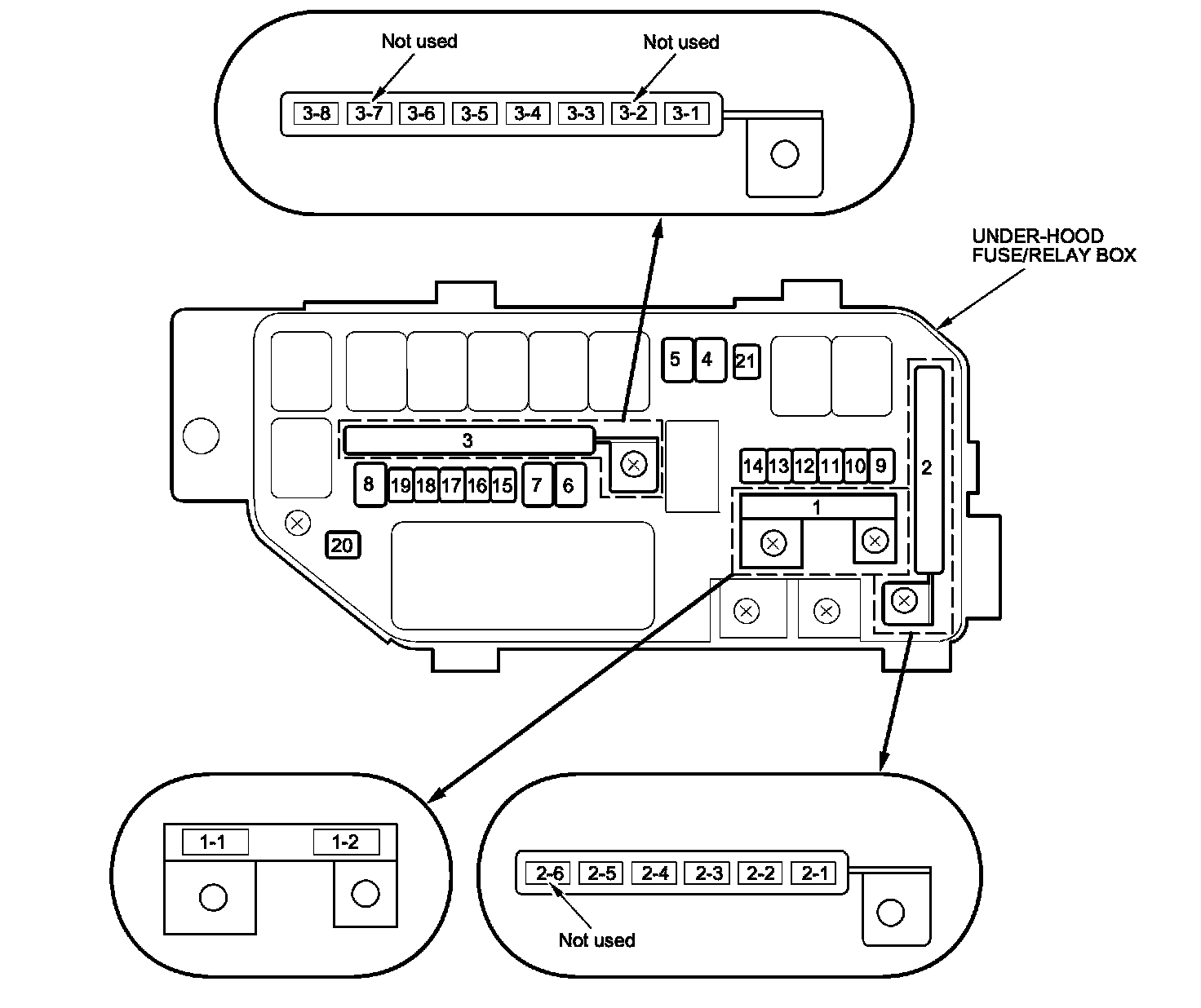

Under-Hood Fuse/Relay Box

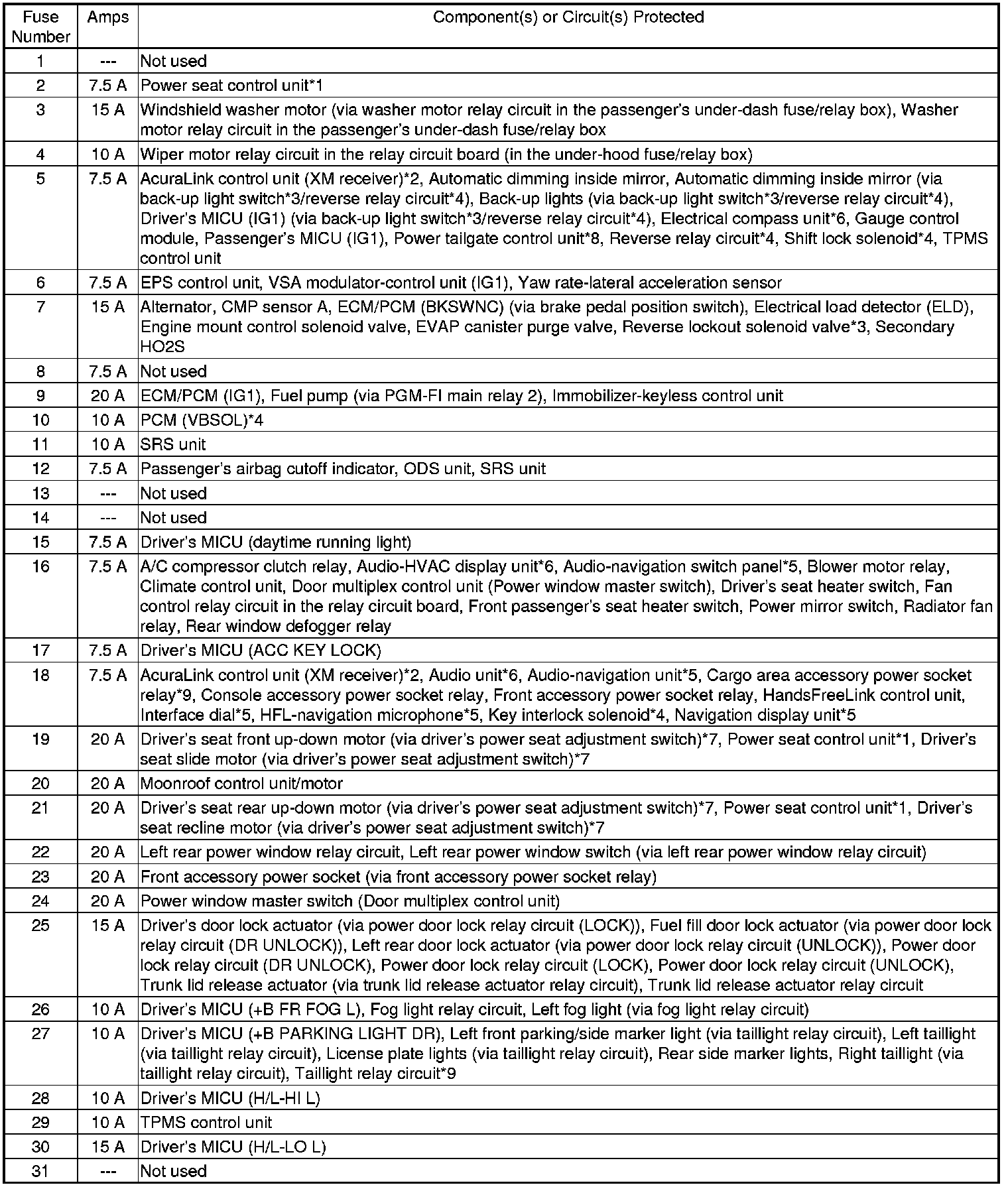

Driver's Under-Dash Fuse/Relay Box

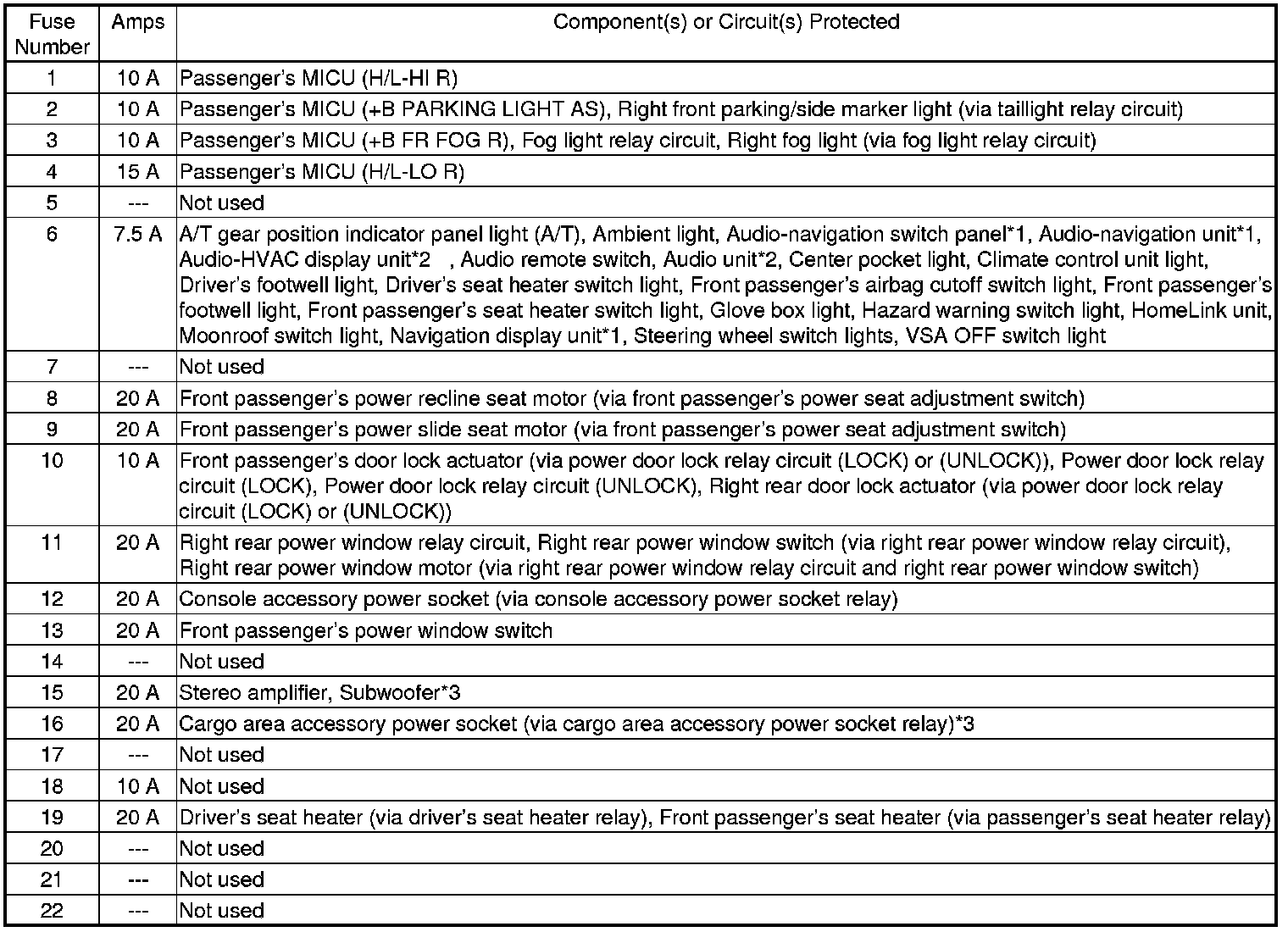

Passenger's Under-Dash Fuse/Relay Box
