Navigation System Forced Starting of the Audio-Navigation Unit

Navigation System Forced Starting of the Audio-Navigation Unit

Special Tools Required

- SCS Service Connector 07PAZ-001010A

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

2. Remove the right side kick panel.

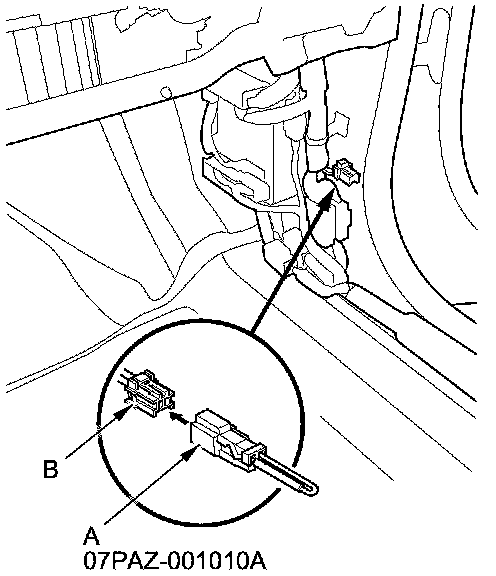

3. Connect the SCS service connector (A) to the navigation service check connector (B) located by the passenger's kick panel.





4. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

5. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the System Links menu.

NOTE: If the display fails to display the System Links screen, refer to no picture is displayed troubleshooting Symptom Troubleshooting.
