Audio Remote, HFL-Navigation, Voice Control Switch Connector View (With Navigation System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

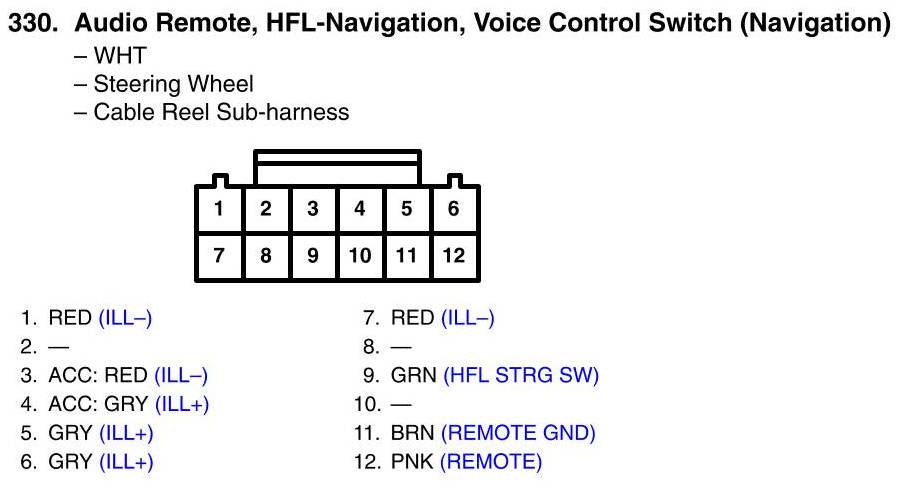

Audio Remote, HFL-Navigation, Voice Control Switch Connector View (With Navigation System)
