Audio Display Unit Connector View (Without Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

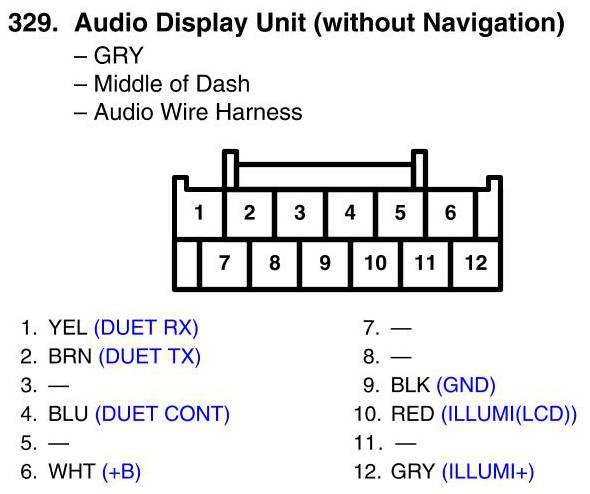

Audio Display Unit Connector View (Without Navigation)
