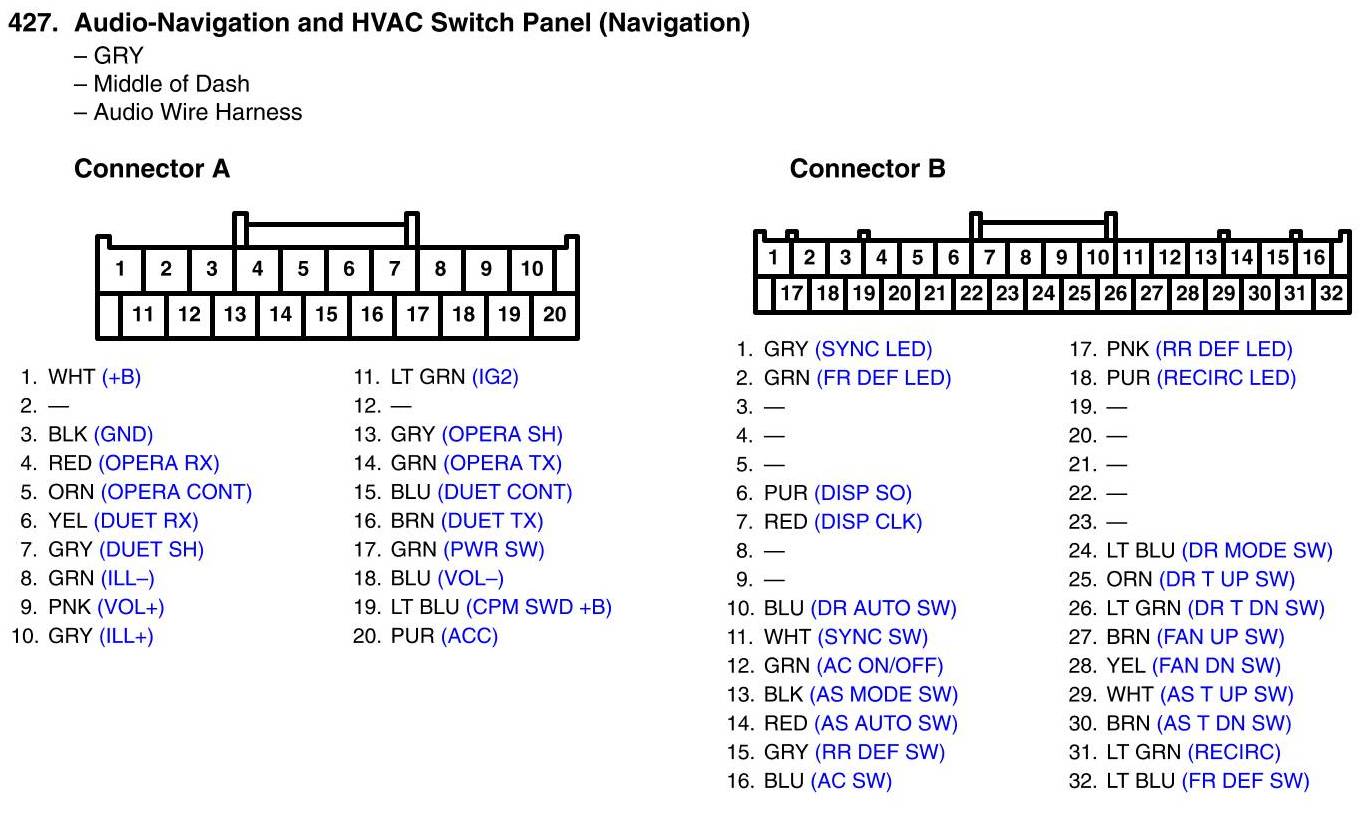

Audio-Navigation and HVAC Switch Panel Connector View (With Navigation)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Audio-Navigation and HVAC Switch Panel Connector View (With Navigation)
