Navigation System Forced Starting Of the Audio-Navigation Unit

Navigation System Forced Starting of the Audio-Navigation Unit

Special Tools Required

- SCS Service Connector 07PAZ-001010A

1. Turn the ignition switch to LOCK (0).

2. Remove the right kick panel Service and Repair.

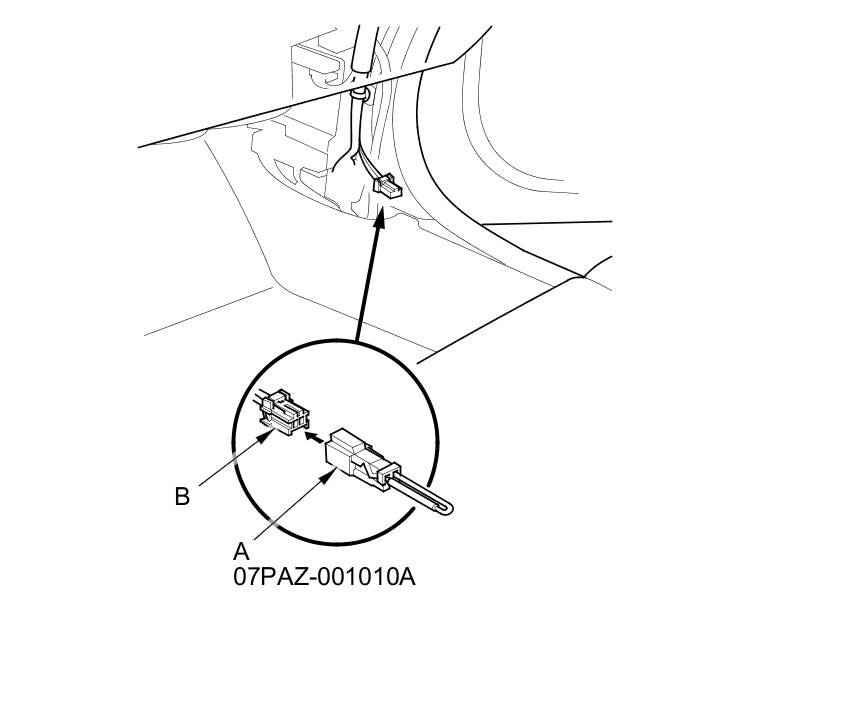

3. Connect the SCS service connector (A) to the navigation service connector (B) located by the right kick panel.





4. Turn the ignition switch to ON (II).

5. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the system link menu.

NOTE: If the display fails to display the system link screen, refer to no picture is displayed Symptom Troubleshooting.
