C201 Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

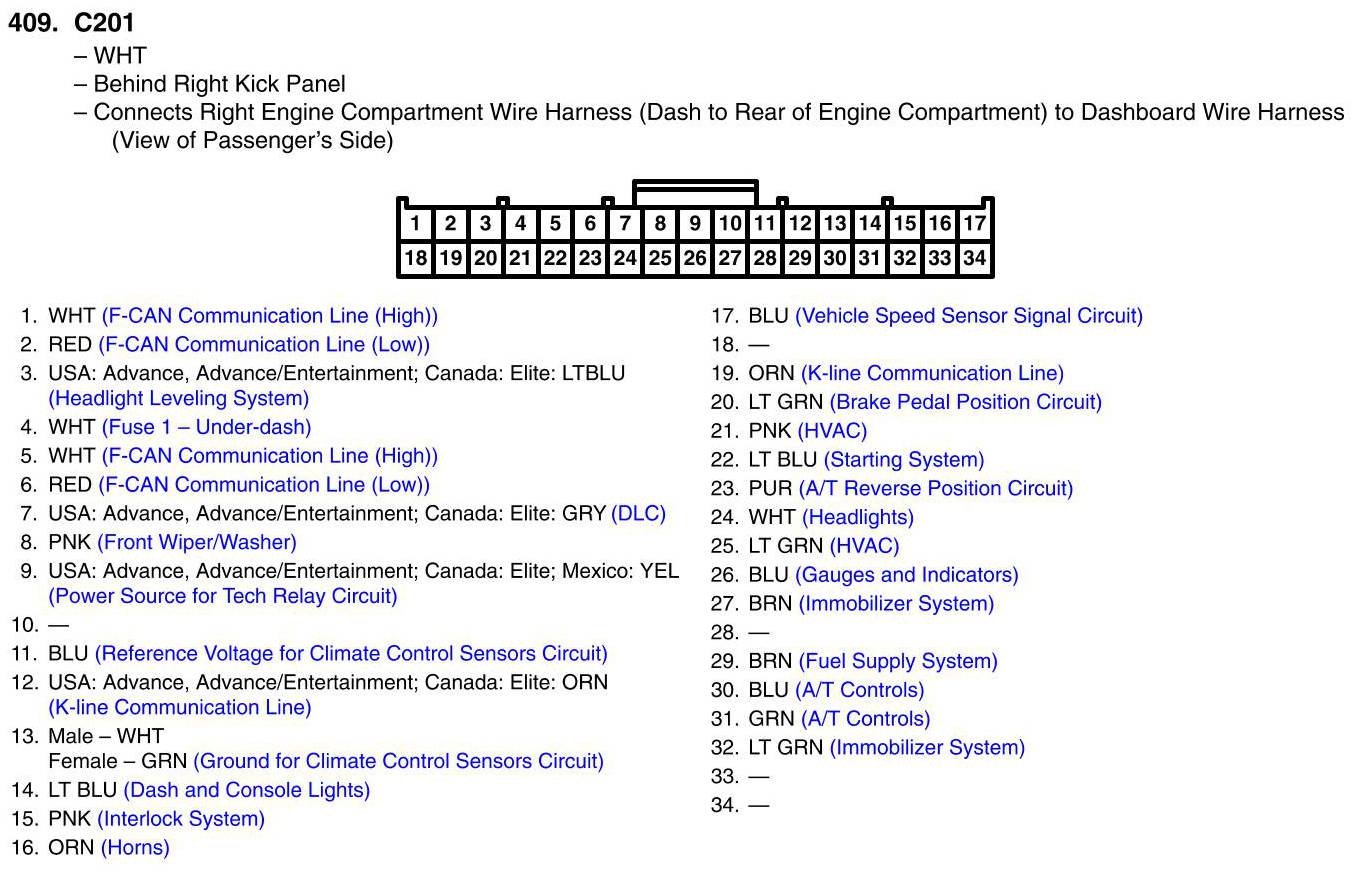

C201 Connector View
