Fuse to Components Index All

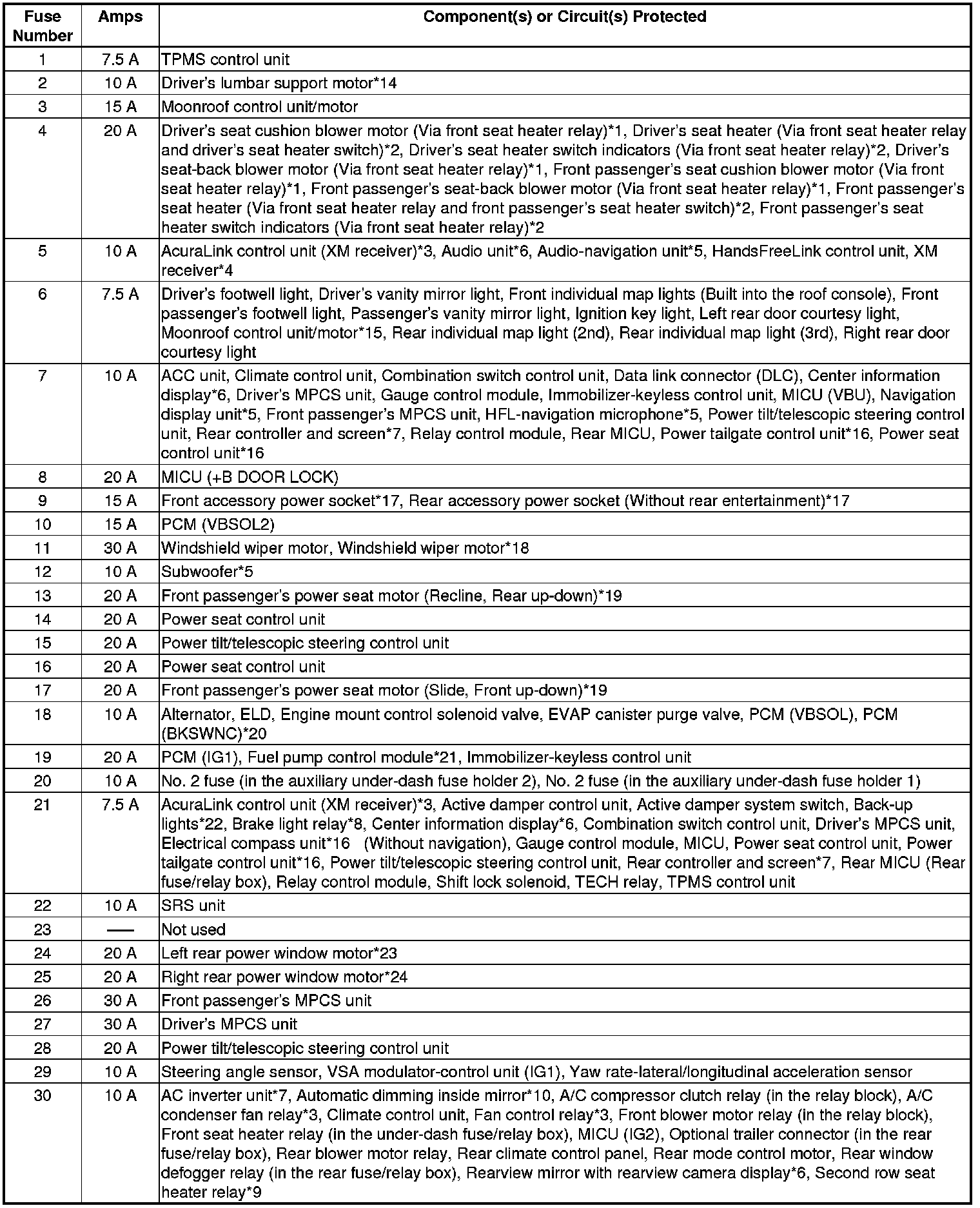

Fuse to Components Index

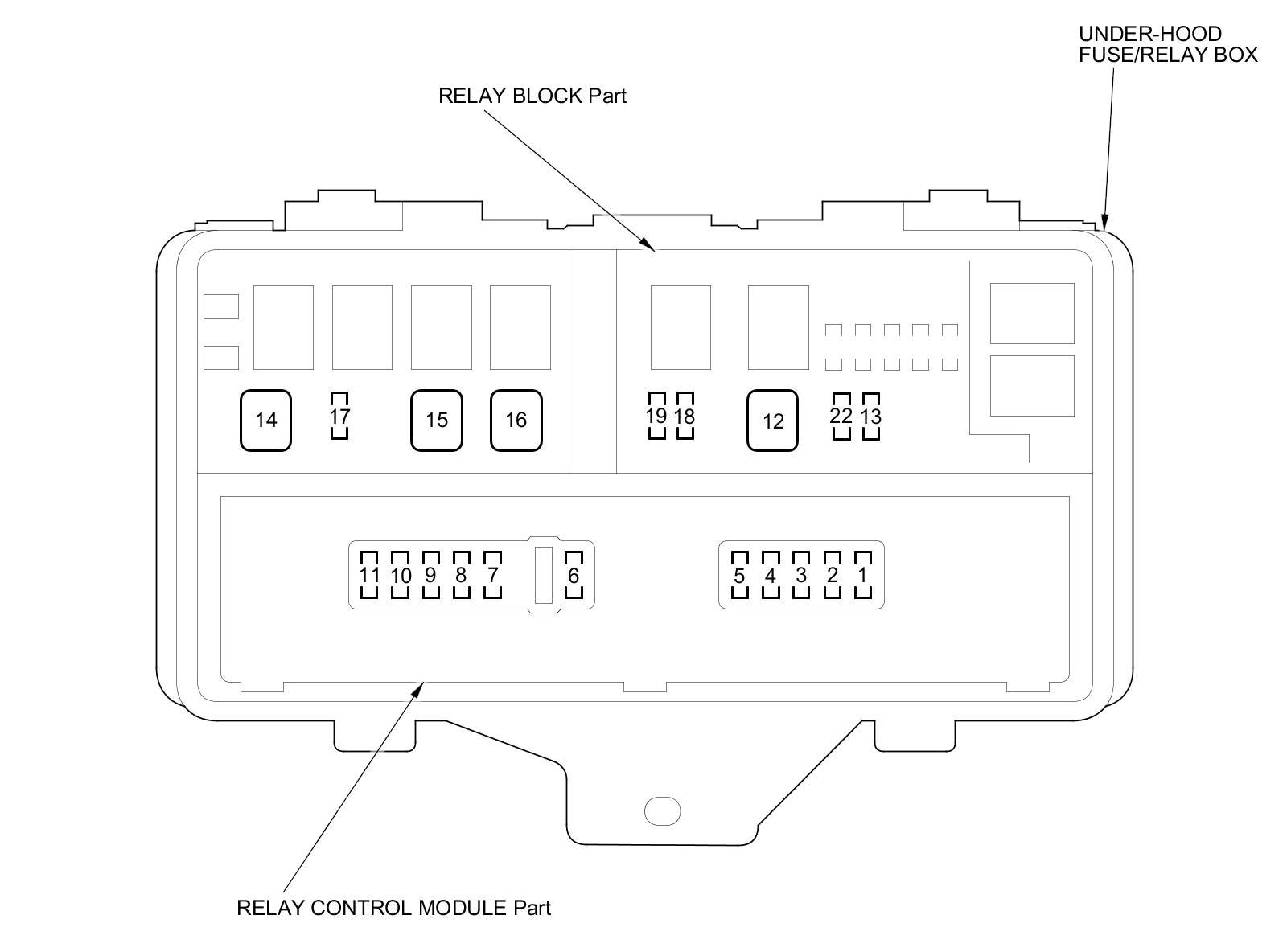

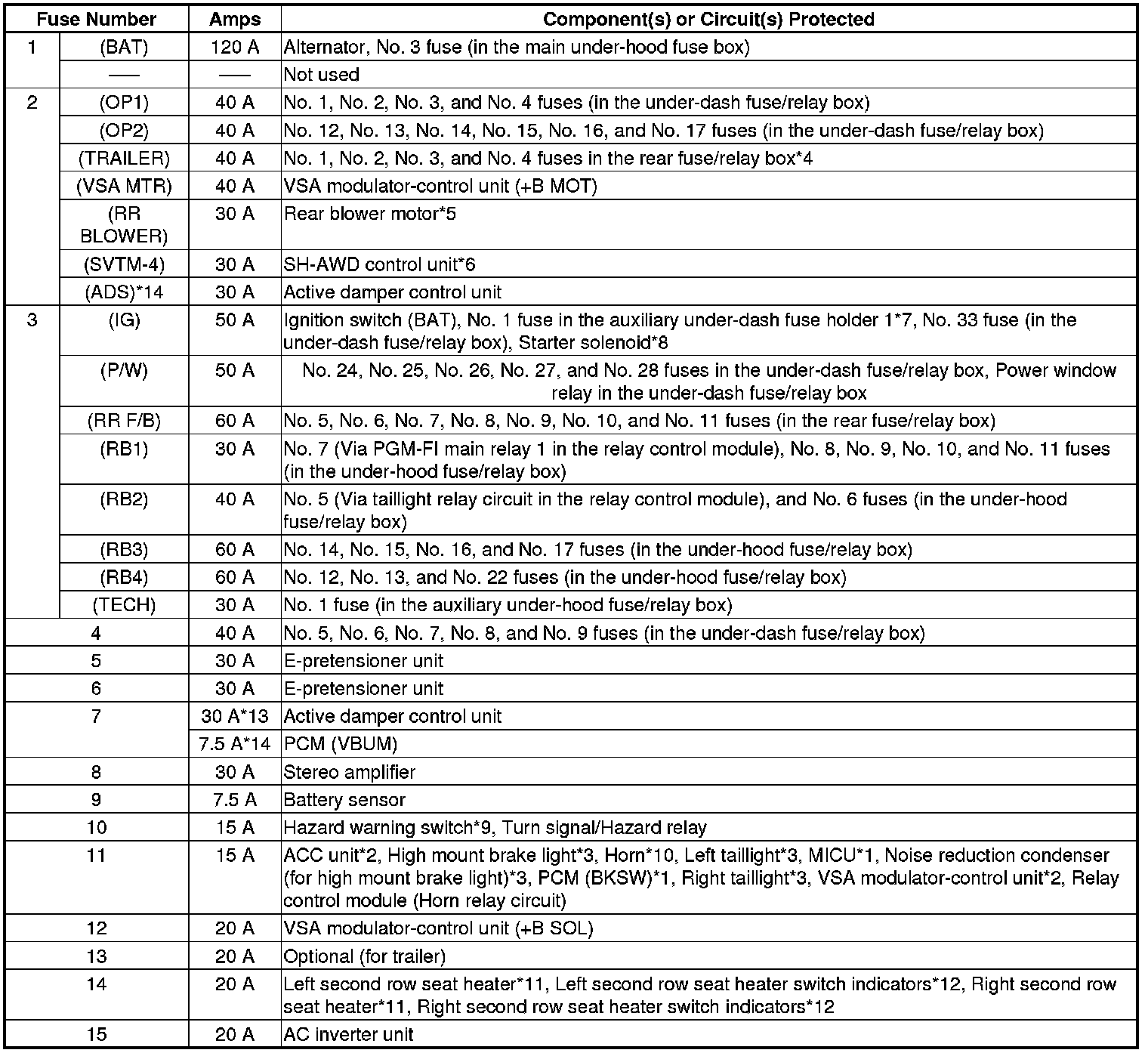

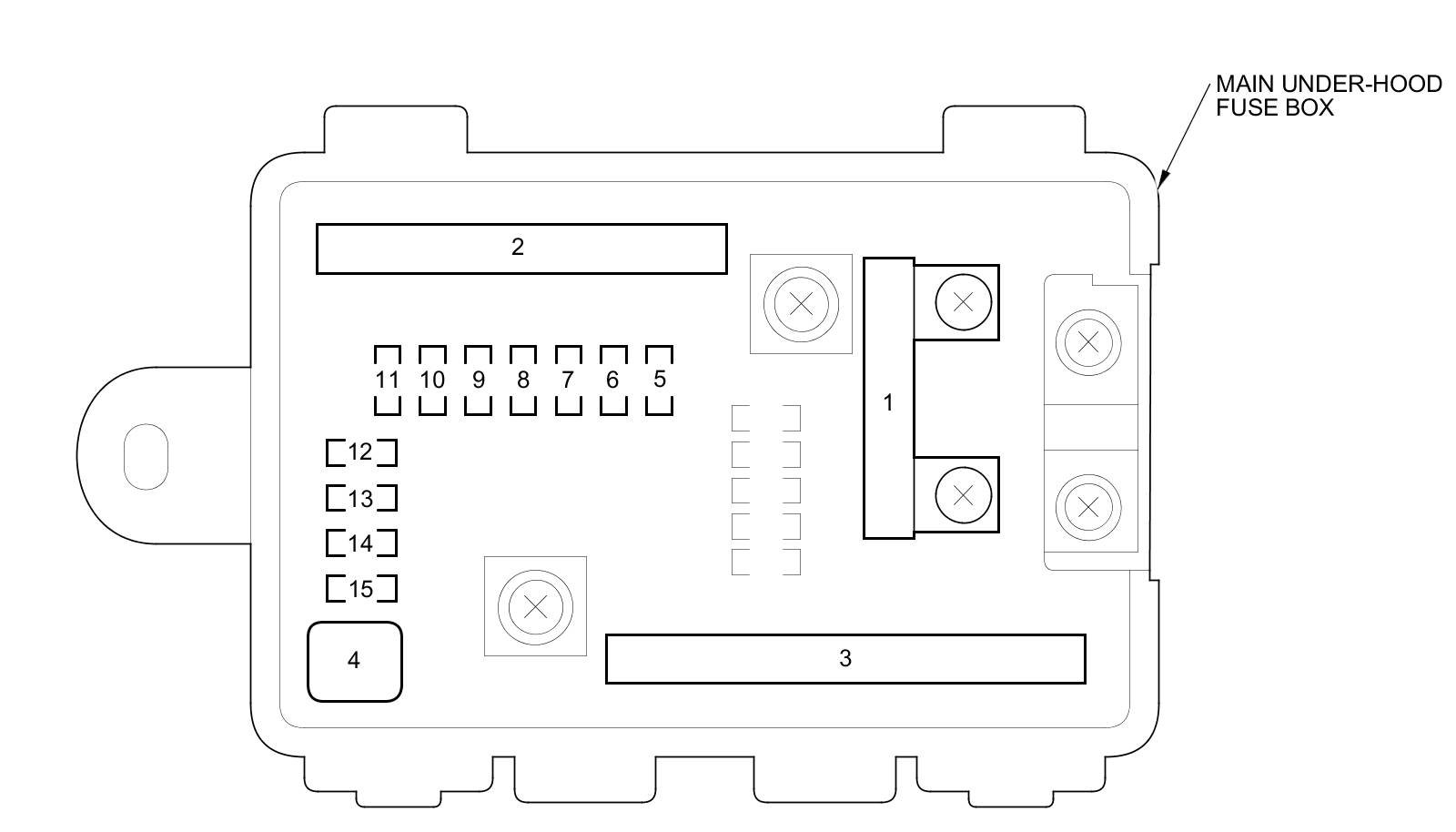

Main Under-hood Fuse Box

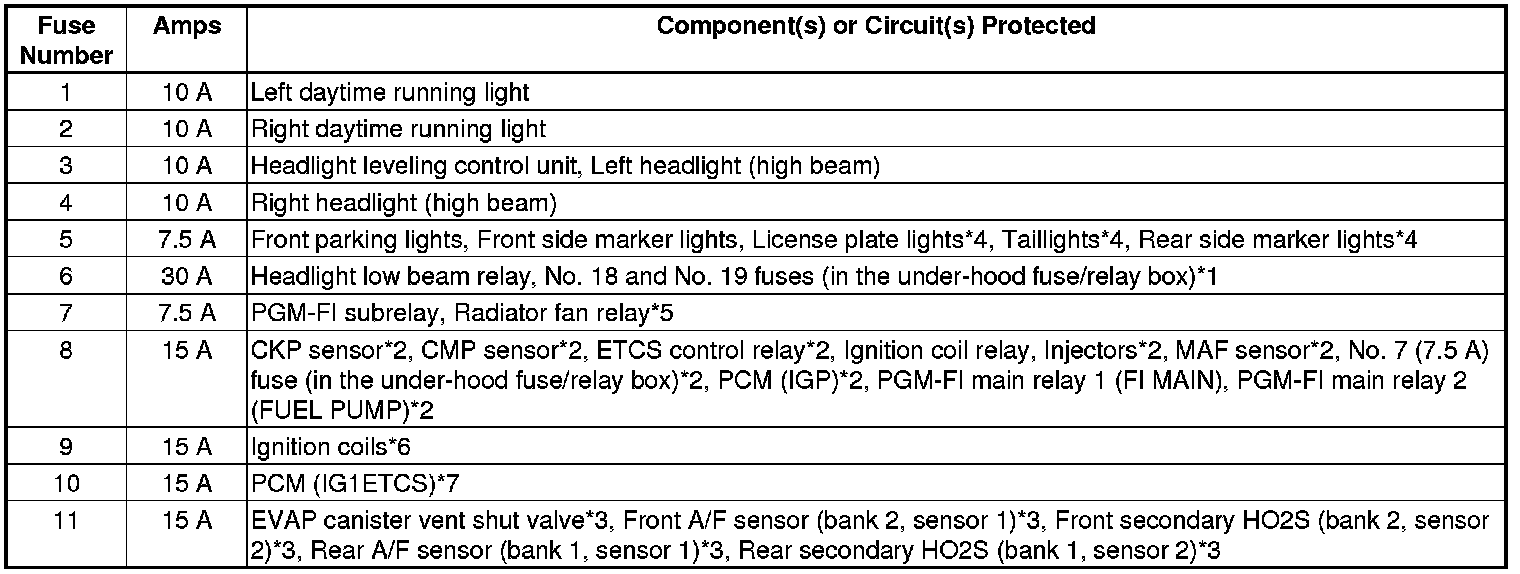

Under-hood Fuse/Relay Box (Relay Control Module part)

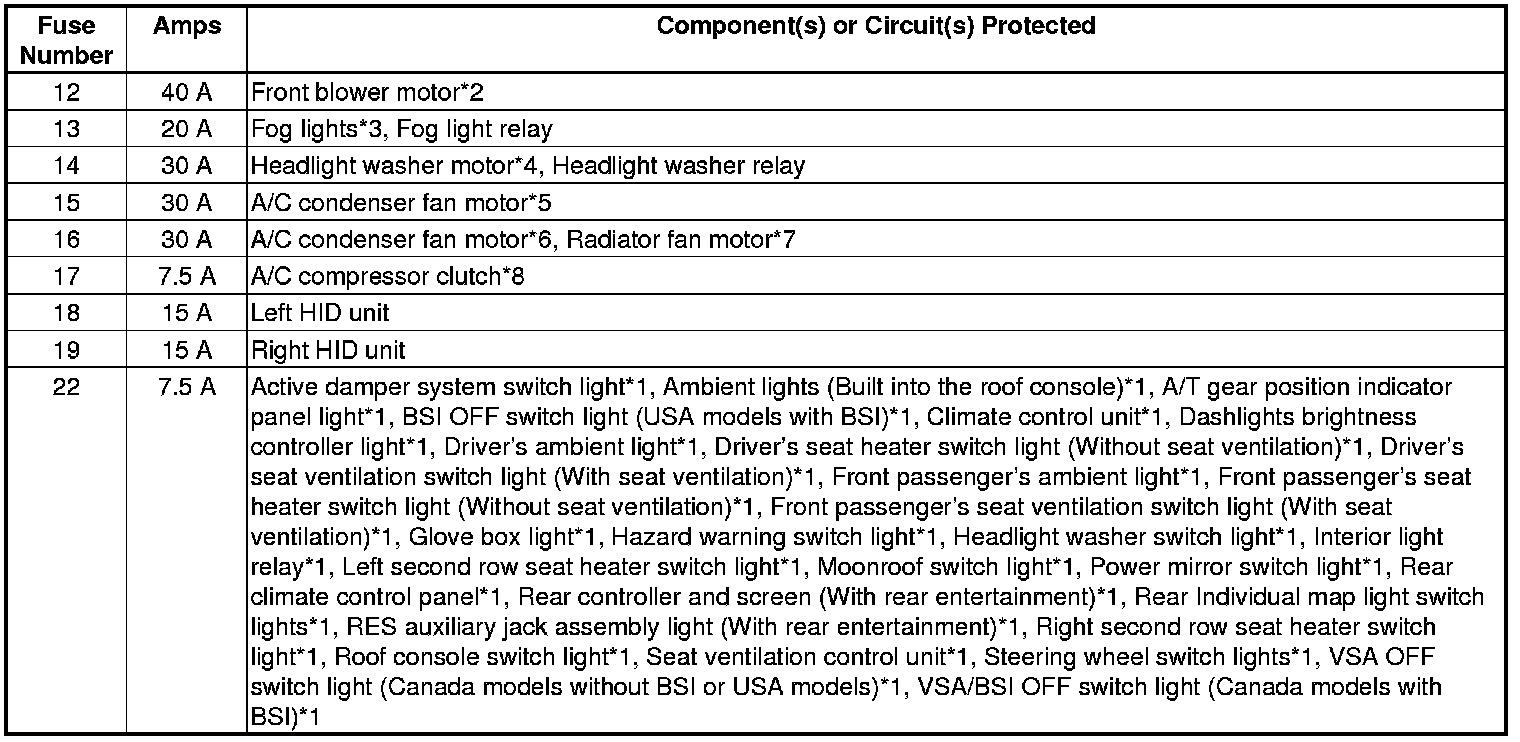

Under-hood Fuse/Relay Box (Relay Block part)

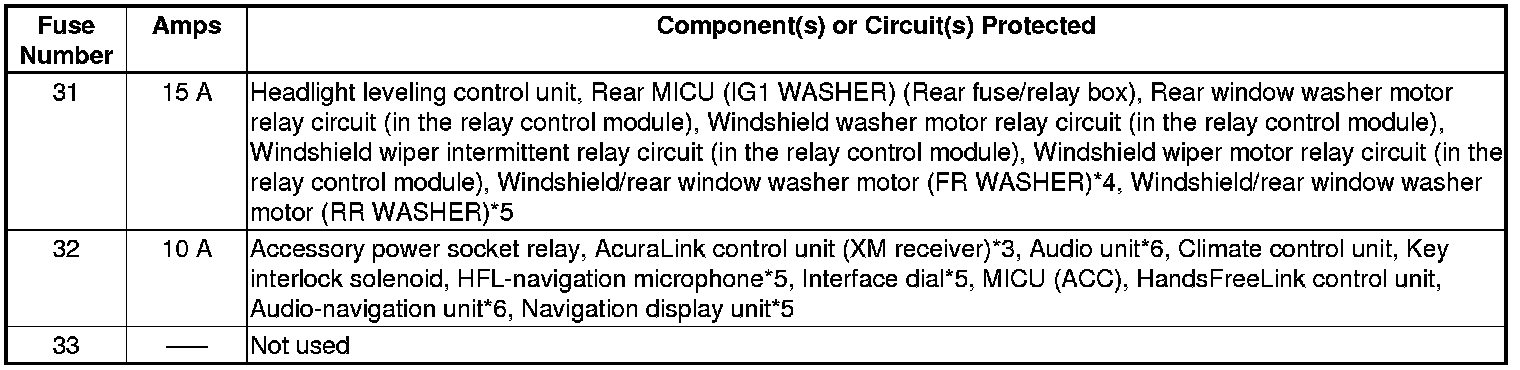

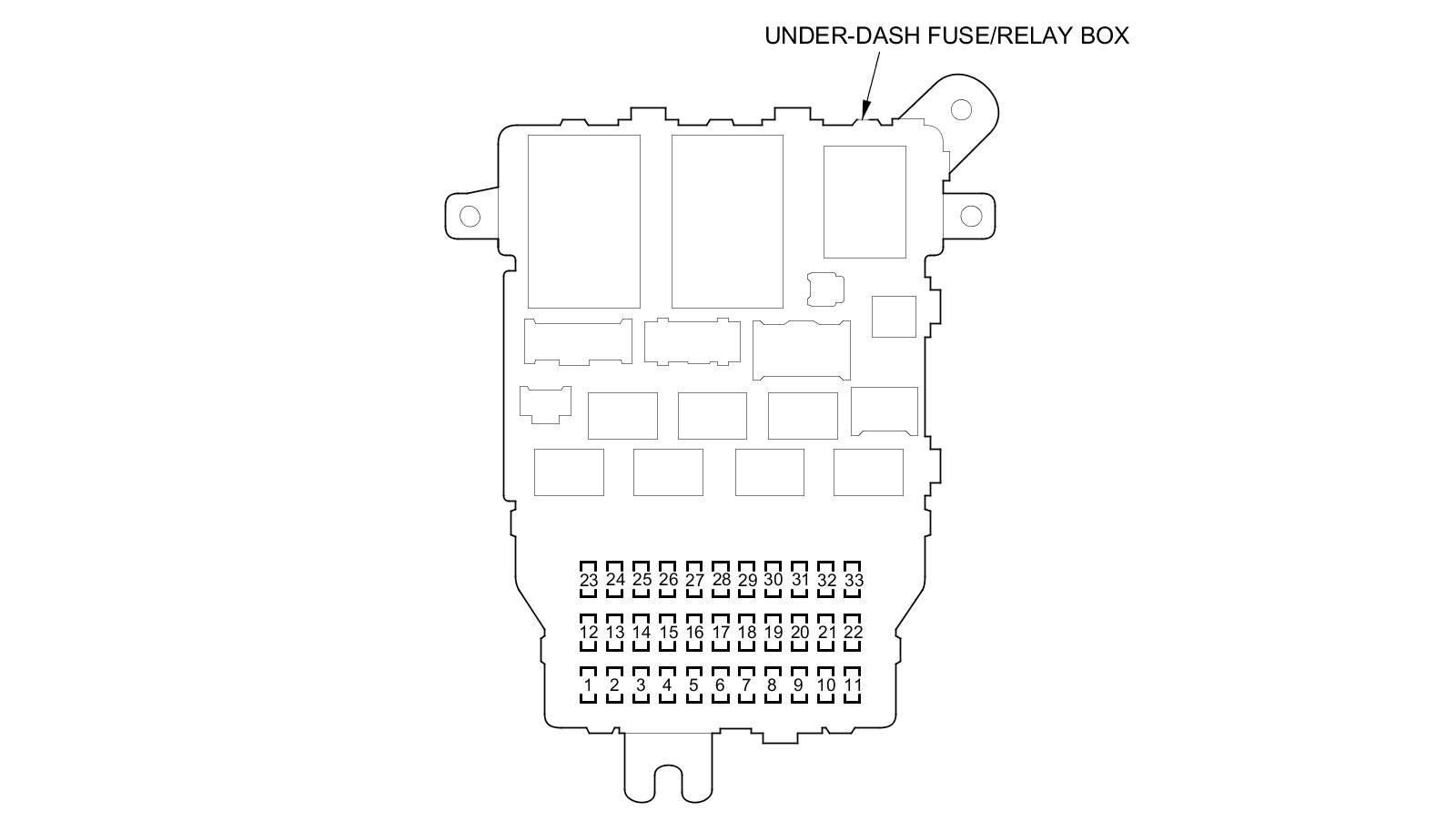

Under-dash Fuse/Relay Box

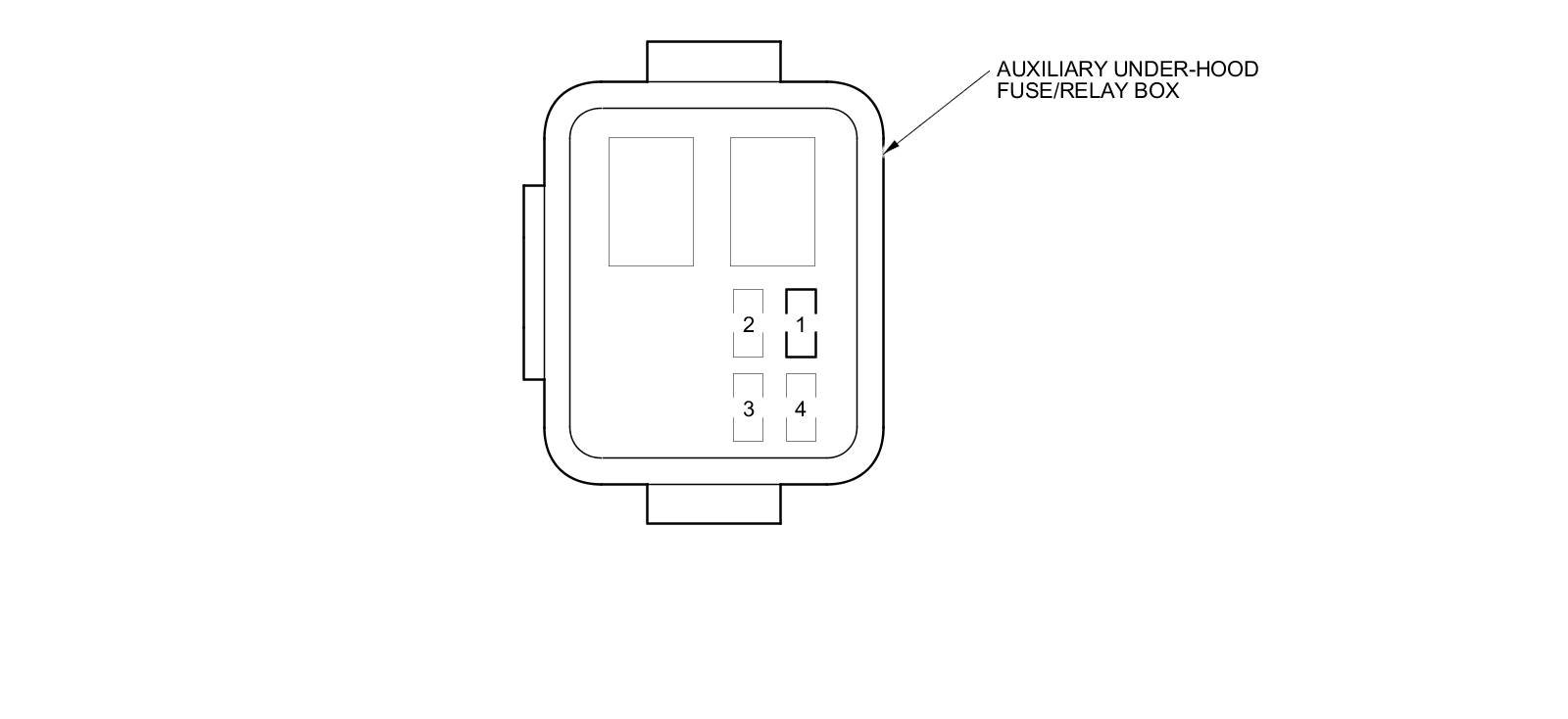

Auxiliary Under-hood Fuse/Relay Box

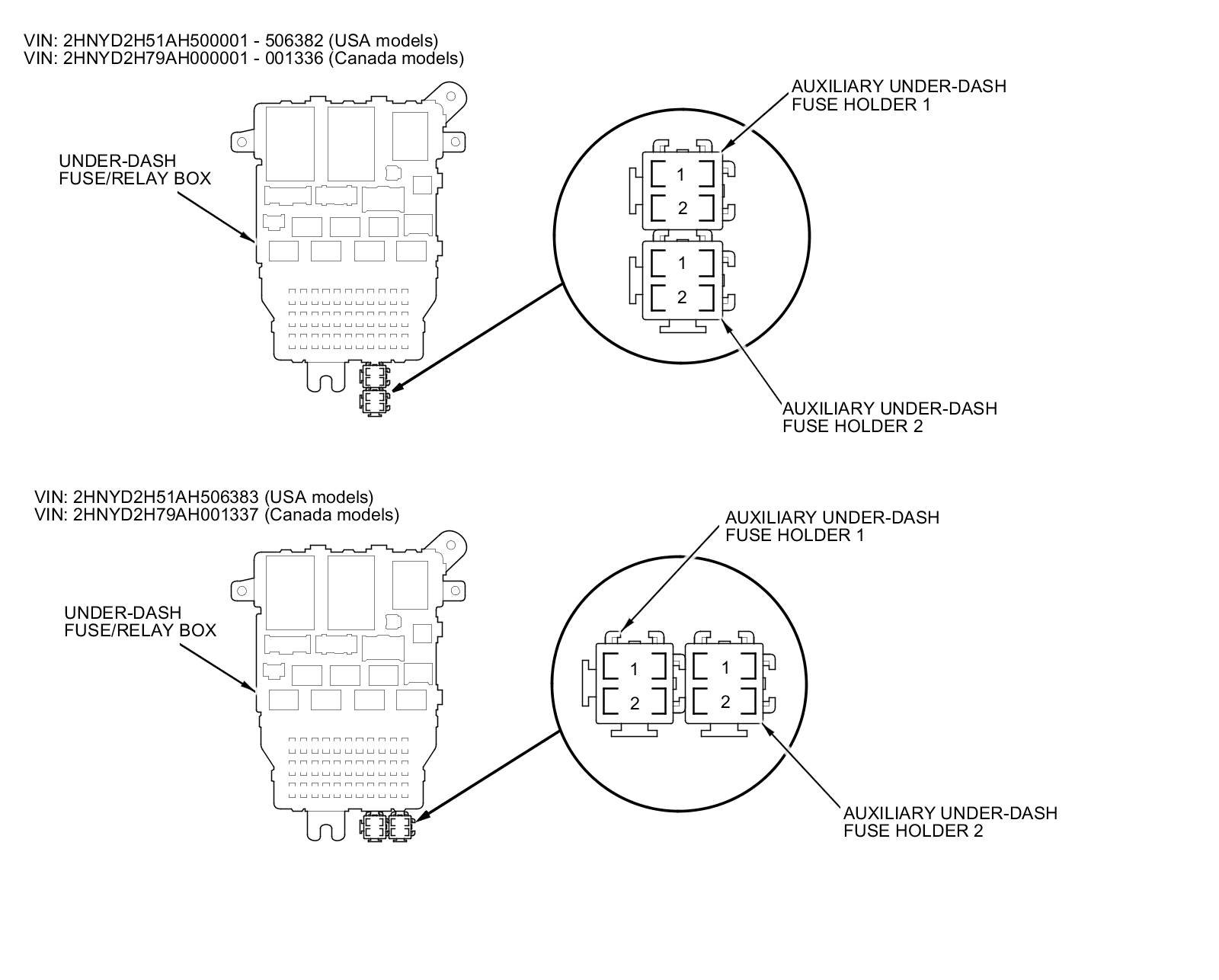

Auxiliary Under-dash Fuse Holder 1
Auxiliary Under-dash Fuse Holder 2

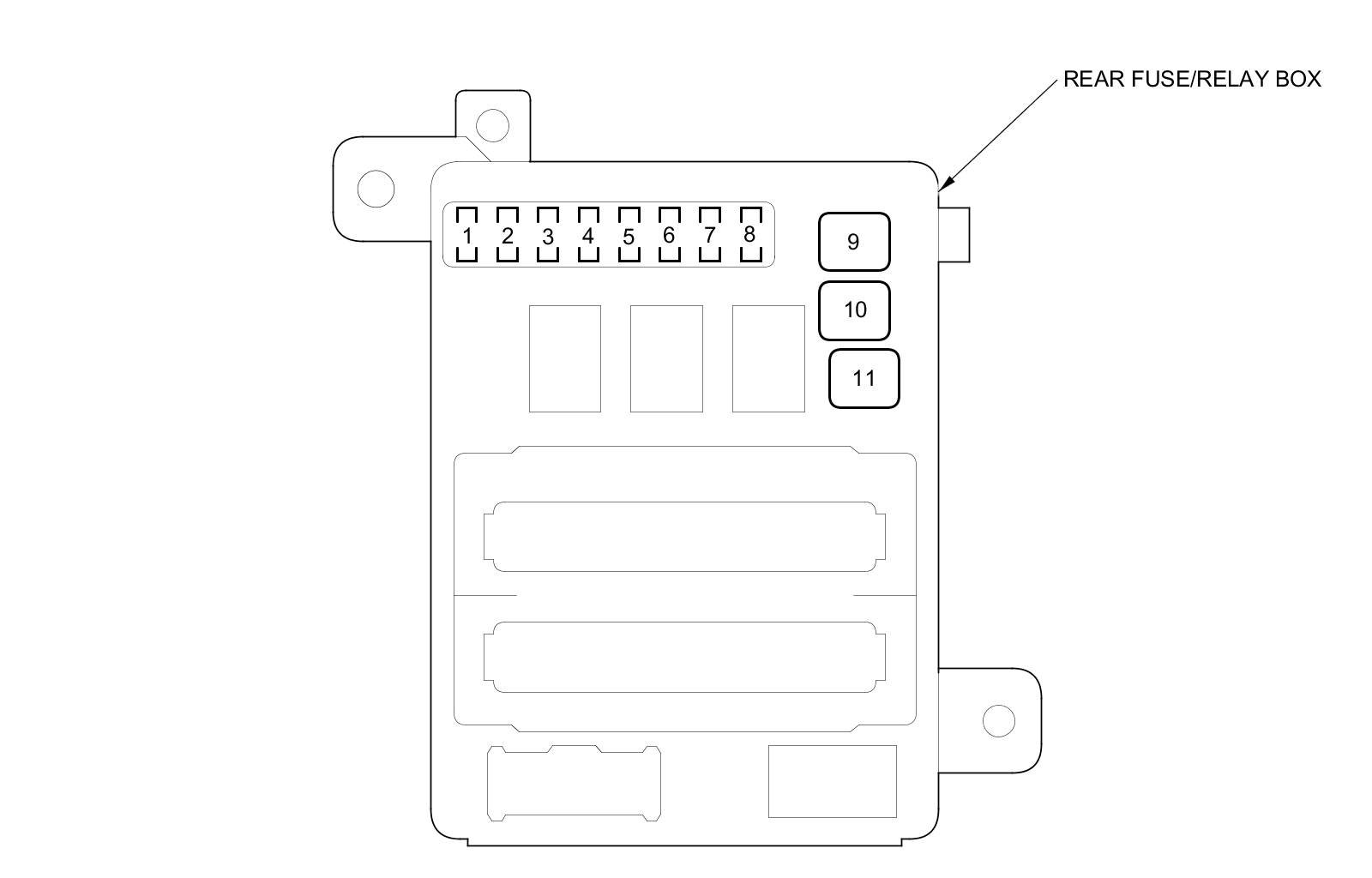

Rear Fuse/Relay Box
