Power Window Master Switch Replacement

Power Window Master Switch Replacement

1. Remove the driver's door panel Front Door Panel Removal/Installation, and disconnect the 14P connector from the power window master switch.

2. Remove the power window switch panel Front Door Panel Removal/Installation.

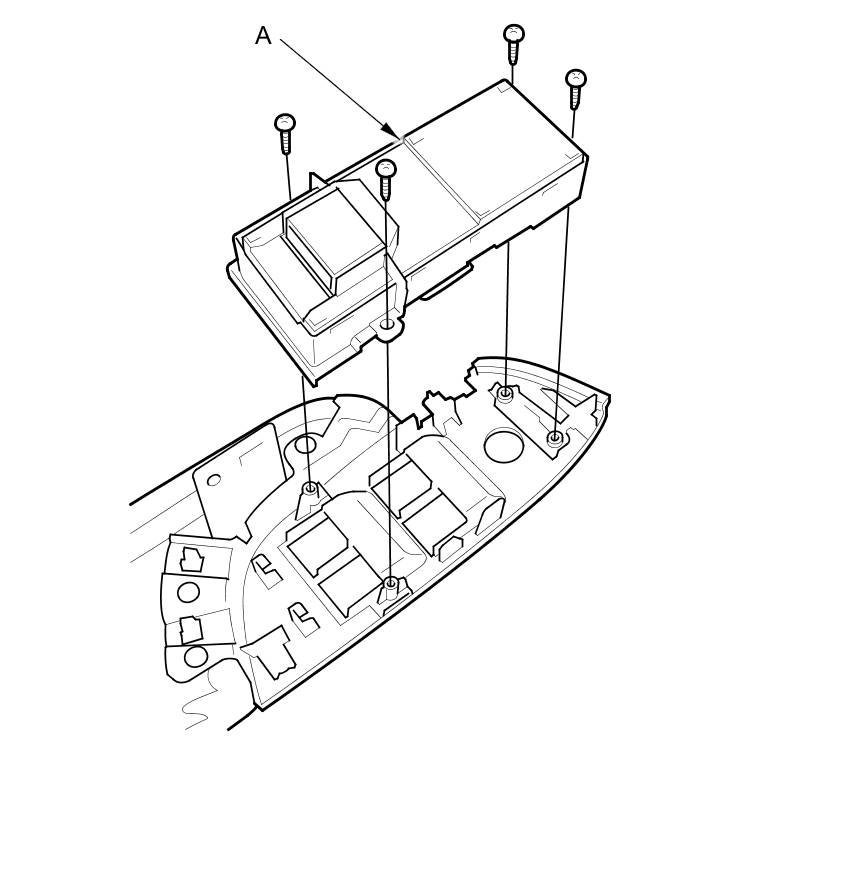

3. Remove the four mounting screws and the power window master switch (A).





4. Install the switch in the reverse order of removal.

5. Reset the power window control unit Testing and Inspection.
