Under-dash Fuse/Relay Box (With Navigation) Connector End View

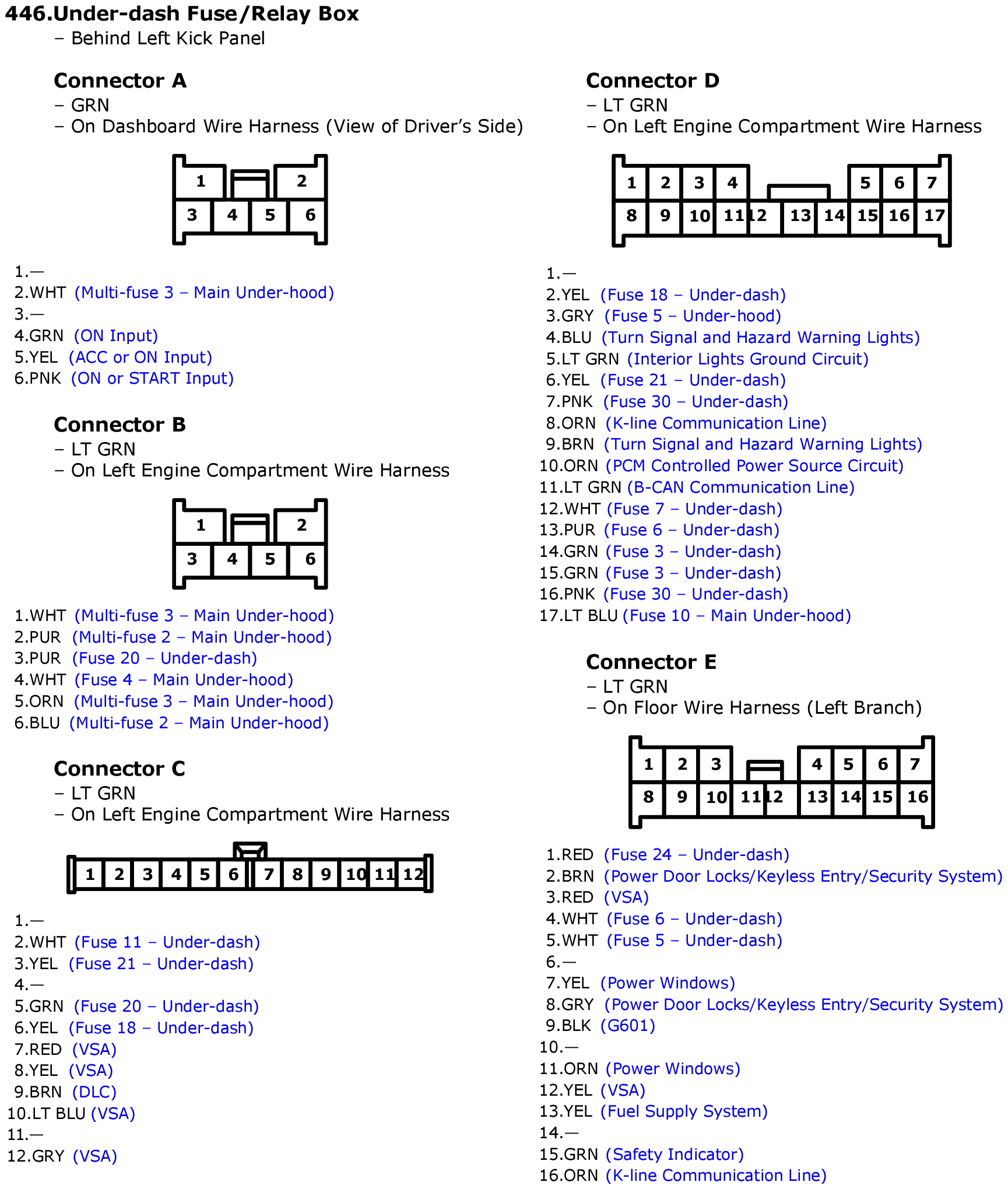

Fig 1: Under-dash Fuse/Relay Box (With Navigation) Connector End View (1 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Under-dash Fuse/Relay Box (With Navigation) Connector End View (2 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Under-dash Fuse/Relay Box (With Navigation) Connector End View (3 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

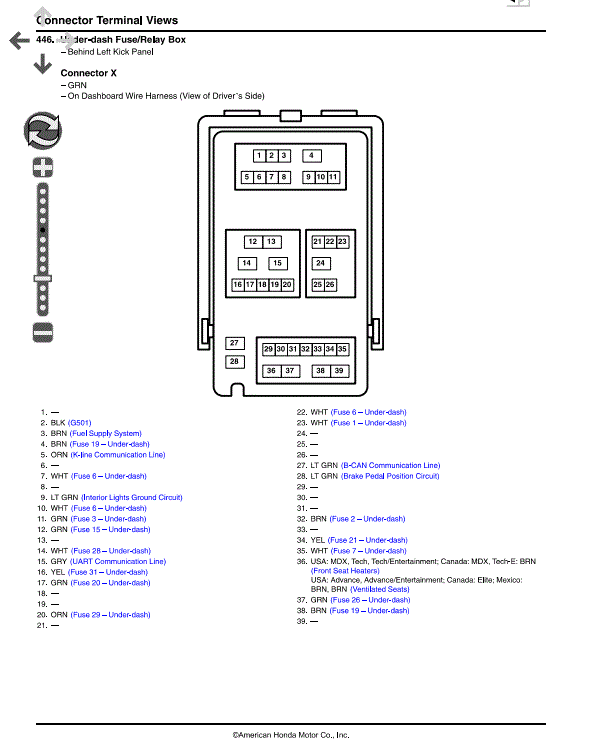

Fig 4: Under-dash Fuse/Relay Box (With Navigation) Connector End View (4 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

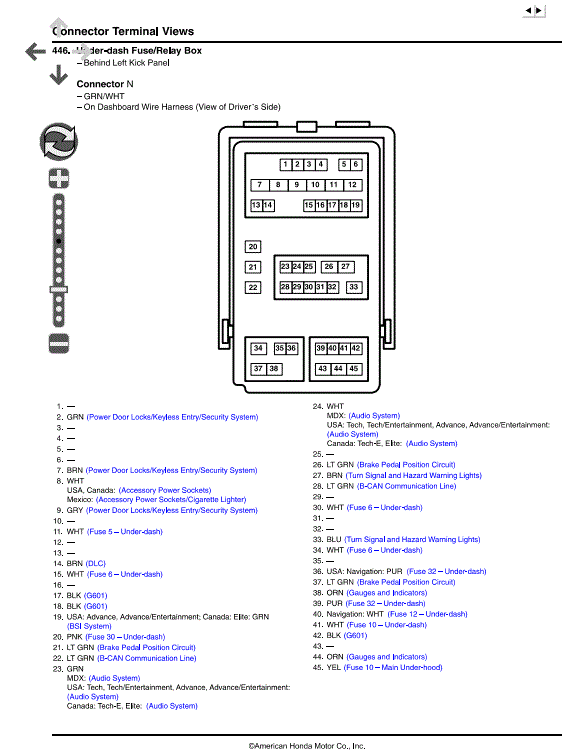

Fig 5: Under-dash Fuse/Relay Box (With Navigation) Connector End View (5 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
