Circuit Diagram - PCM A/T Control System - Keihin PCM

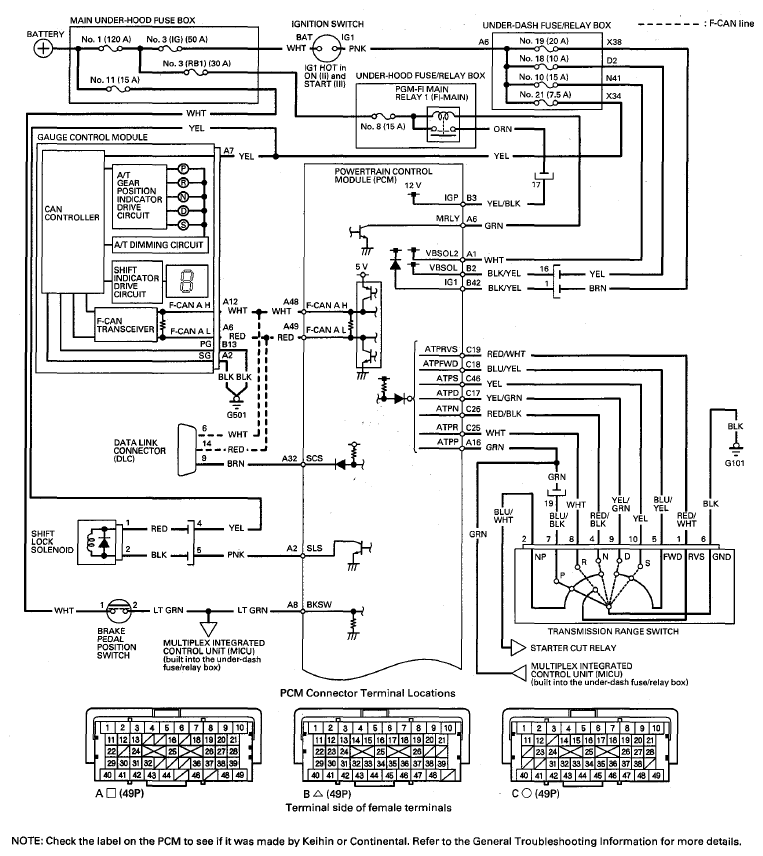

Fig 1: PCM A/T Control System Circuit Diagram - Keihin PCM (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION  for more details.

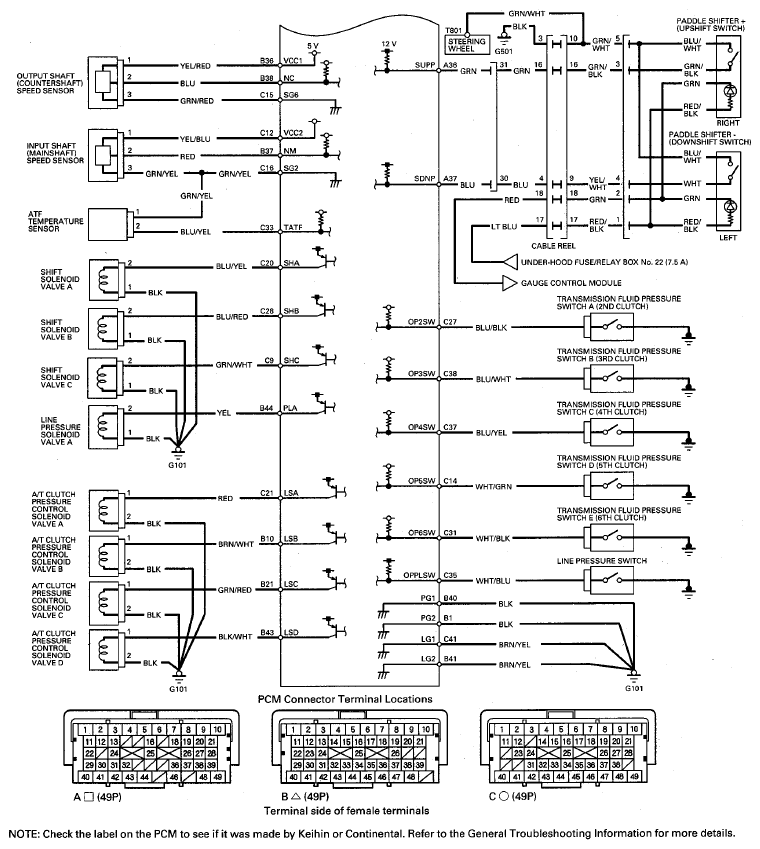

Fig 2: PCM A/T Control System Circuit Diagram - Keihin PCM (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION  for more details.
