Adaptive Cruise Control (ACC) Combination Switch/Distance Switch Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the paddle shifter (see PADDLE SHIFTER REPLACEMENT ).
3. Remove the distance switch (A).

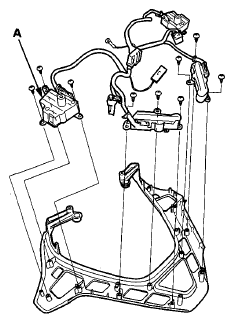

   Fig 1: Identifying Distance Switch On ACC System

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the adaptive cruise control combination switch assembly (A).
   Fig 2: Identifying Adaptive Cruise Control Combination Switch Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the parts in the reverse order of removal.
