System Description
>>
System Diagram
>>
With navigation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With navigation

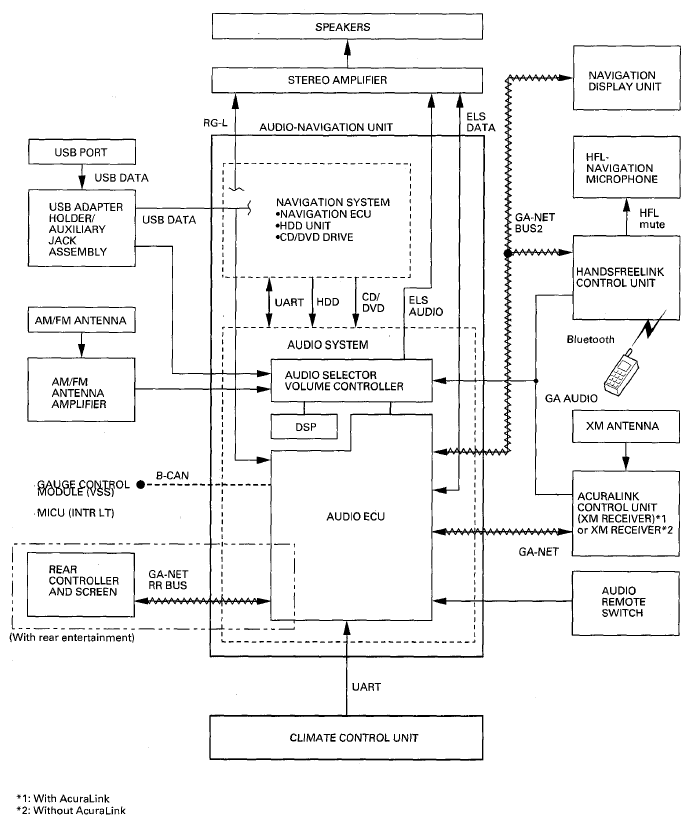

Fig 1: Audio - System Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
