Left Front Brake Fluid Pressure Sensor

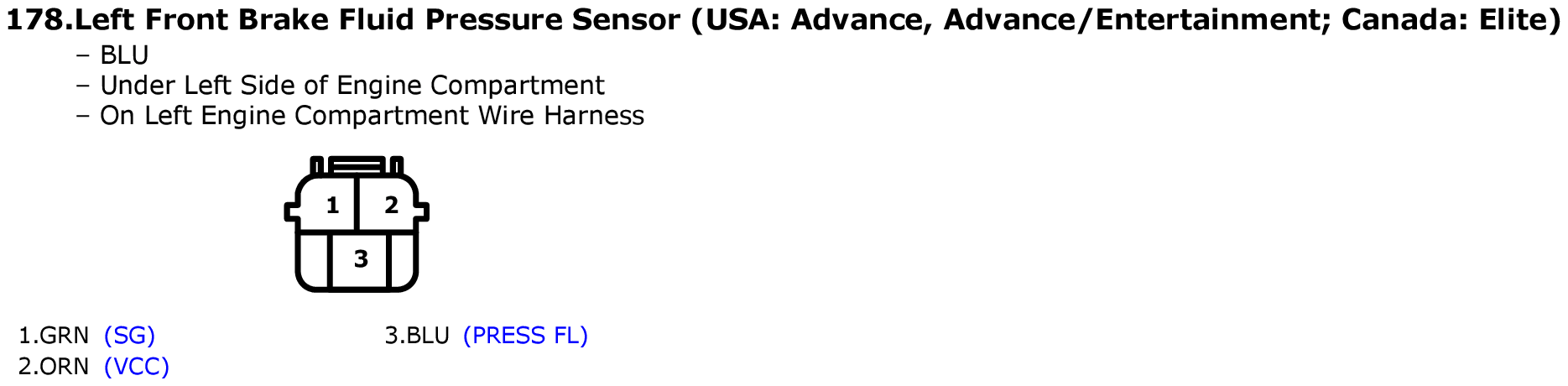

Fig 1: Left Front Brake Fluid Pressure Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
