DTC P2826: Short in Line Pressure Solenoid Valve A Circuit: Notes

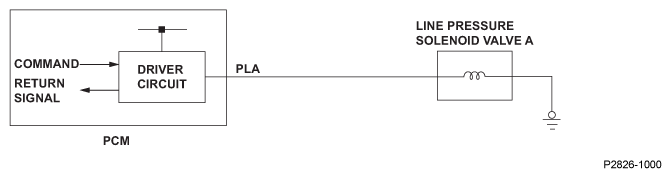

Fig 1: Line Pressure Solenoid Valve A Circuit Diagram

LINE PRESSURE MODE COMBINATION TABLE

	Normal line pressure mode	Low line pressure mode
Line pressure solenoid valve A	OFF	ON
Line pressure switch	OFF	ON
Line pressure condition	Normal	Low
