PCM Circuit Diagram

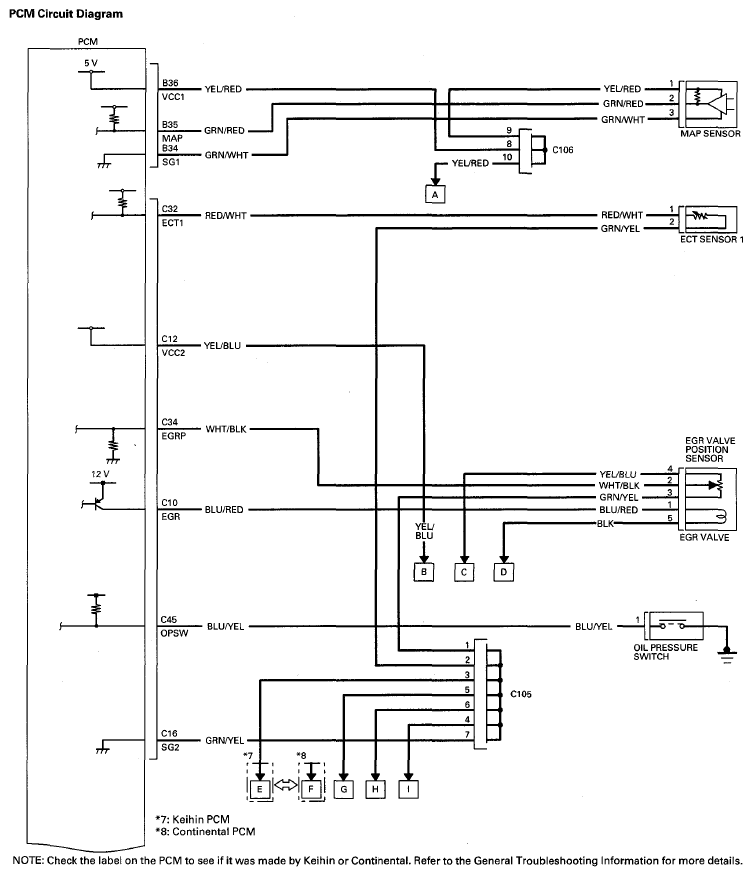

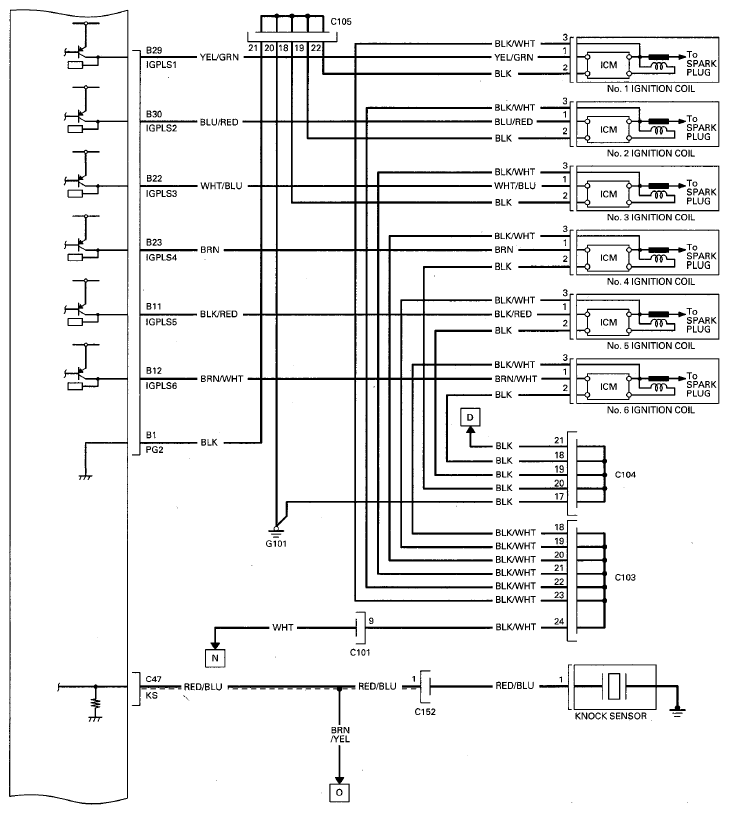

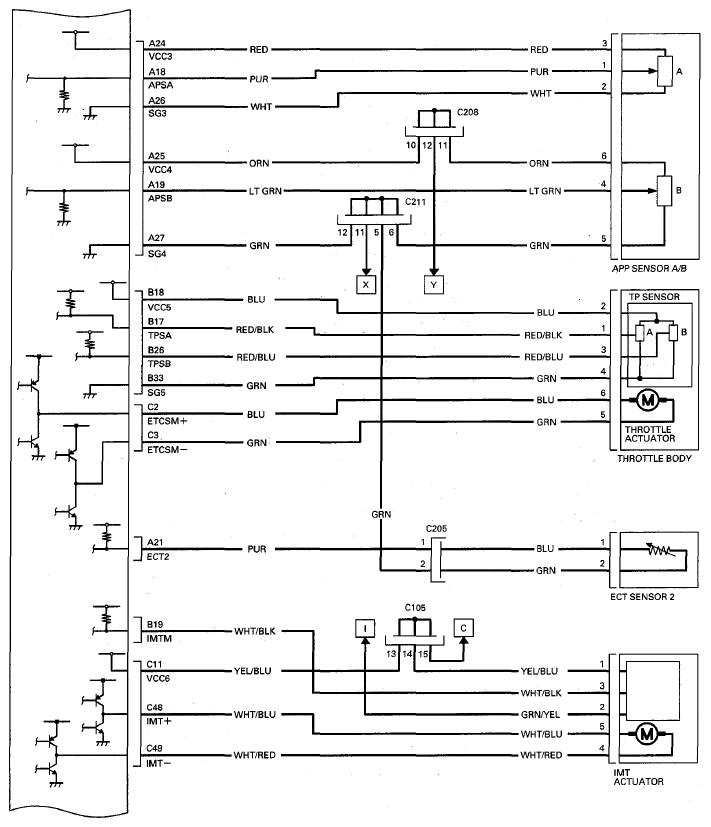

Fig 1: PCM Circuit Diagram (1 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

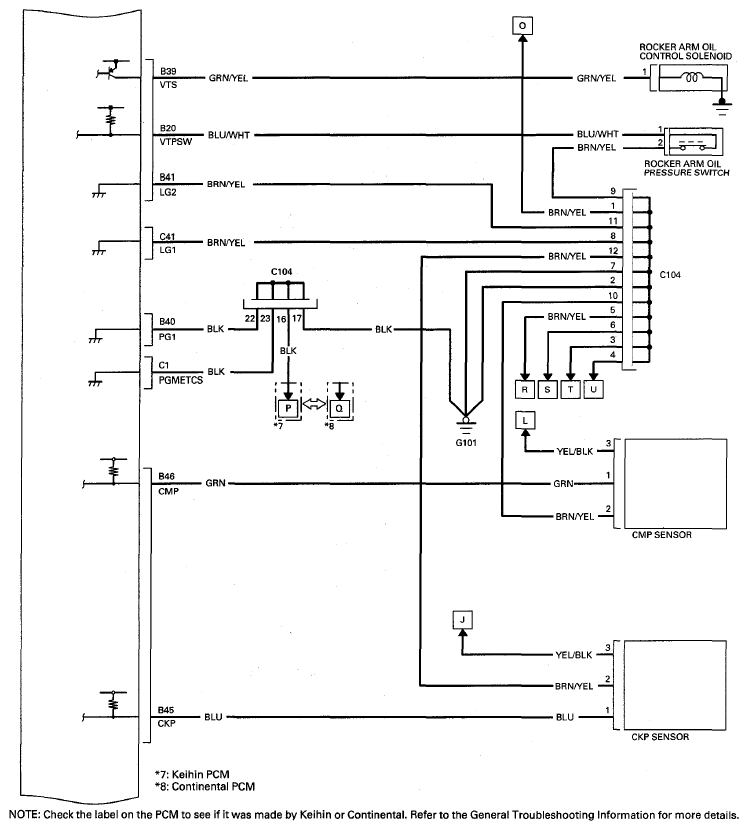

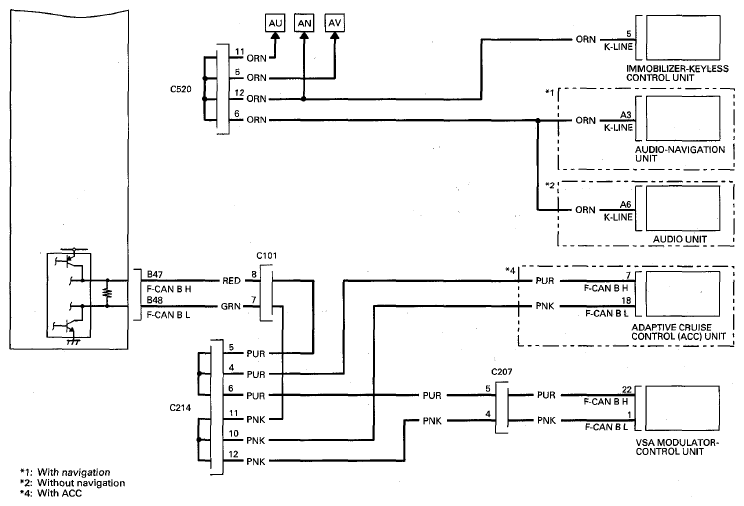

Fig 2: PCM Circuit Diagram (2 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: PCM Circuit Diagram (3 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

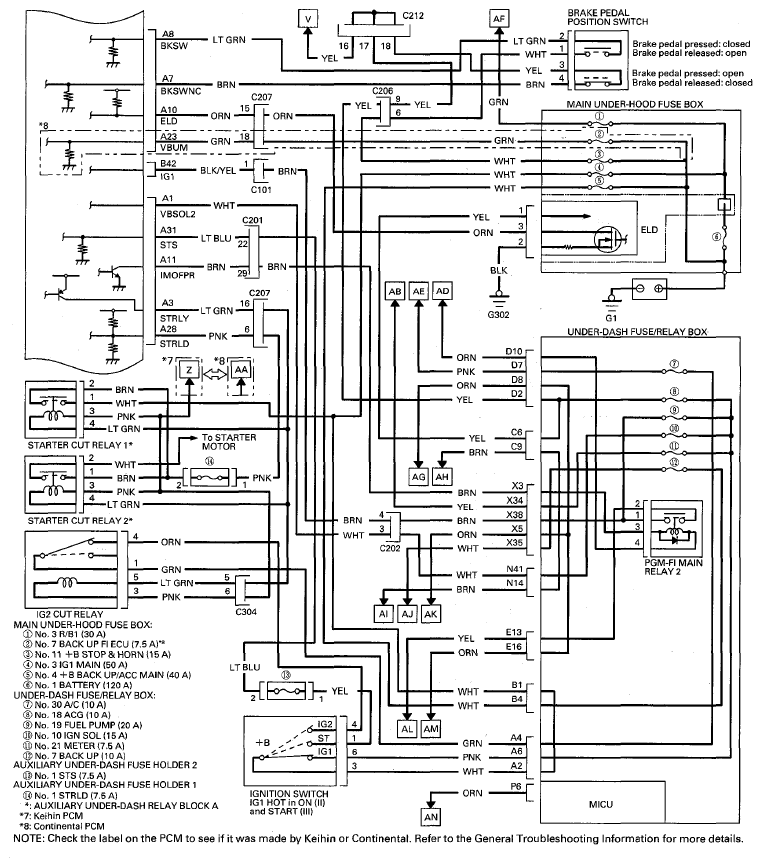

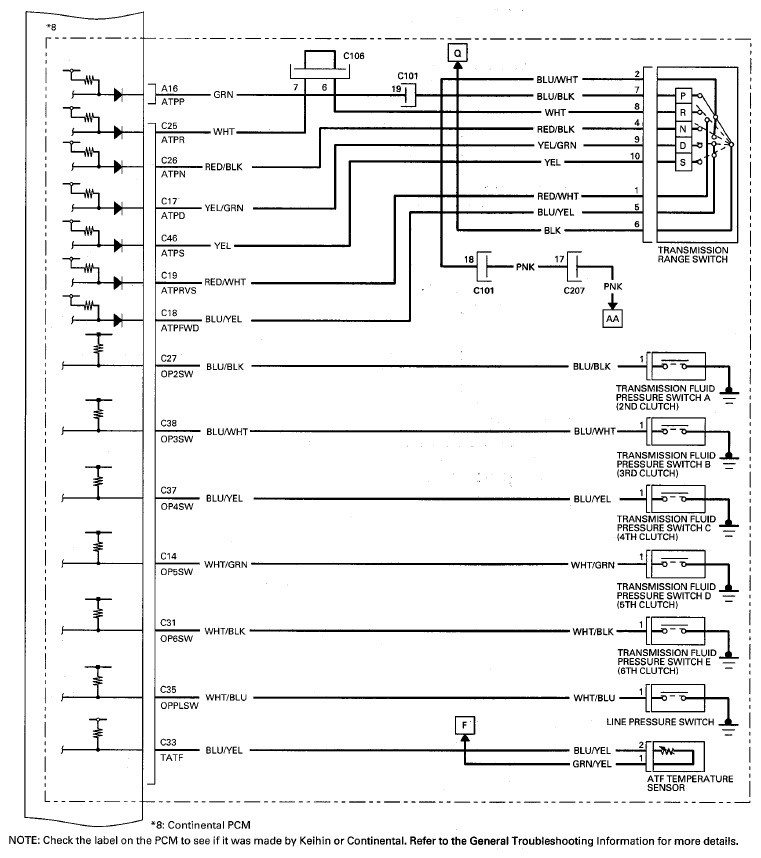

Fig 4: PCM Circuit Diagram (4 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

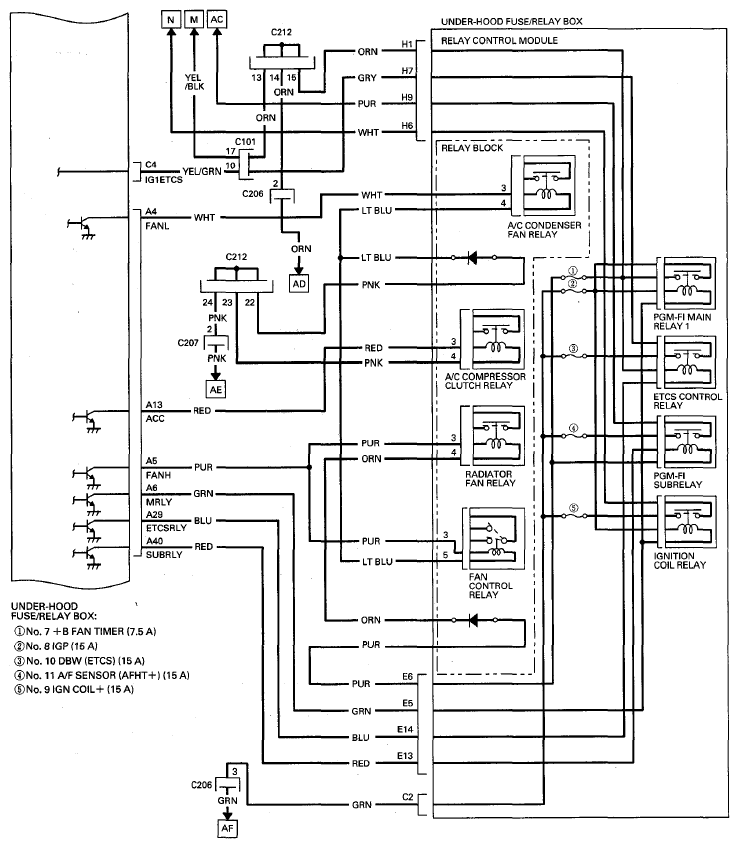

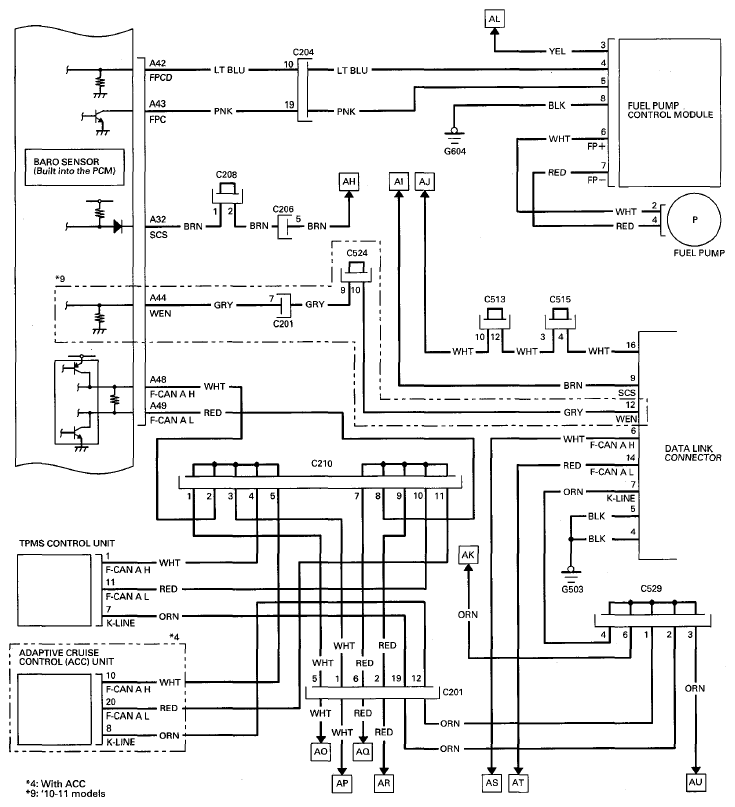

Fig 5: PCM Circuit Diagram (5 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

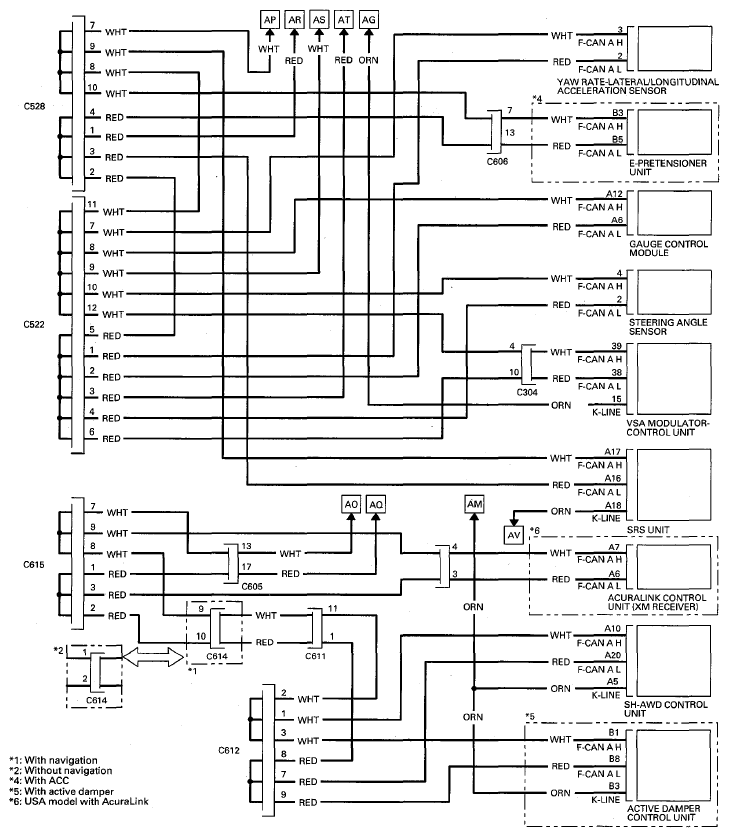

Fig 6: PCM Circuit Diagram (6 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

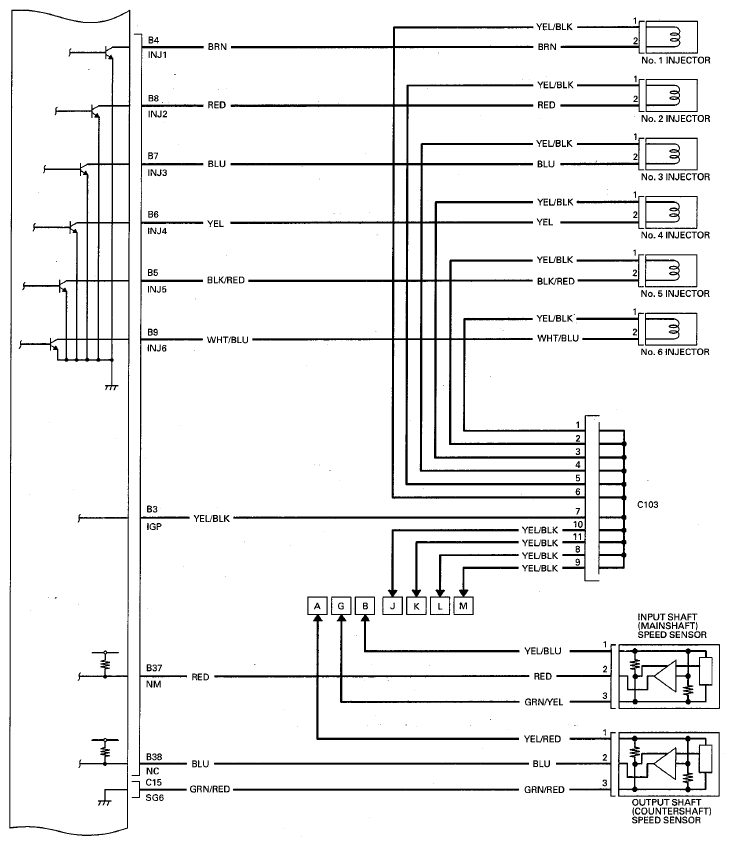

Fig 7: PCM Circuit Diagram (7 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

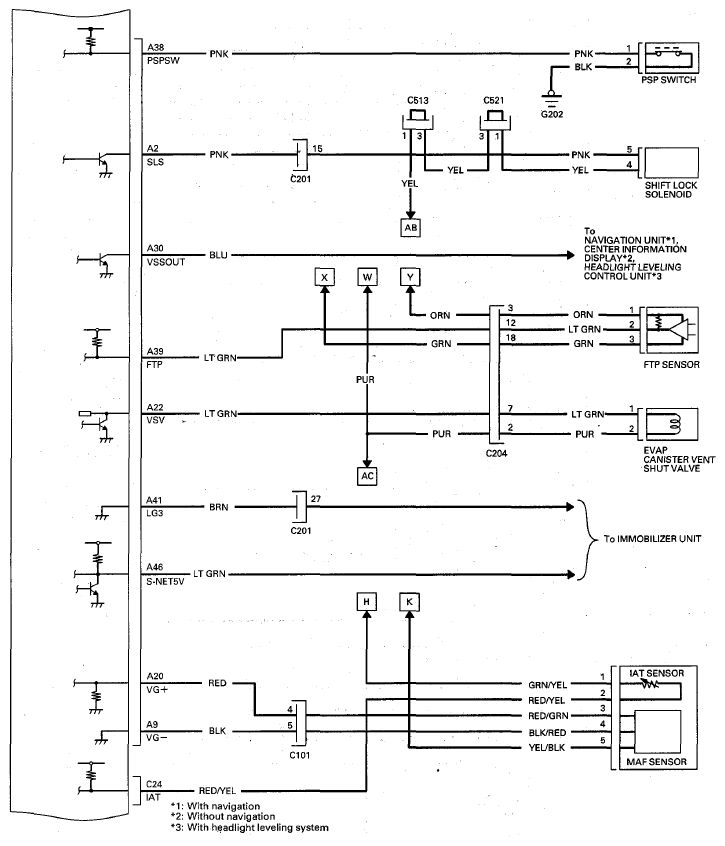

Fig 8: PCM Circuit Diagram (8 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

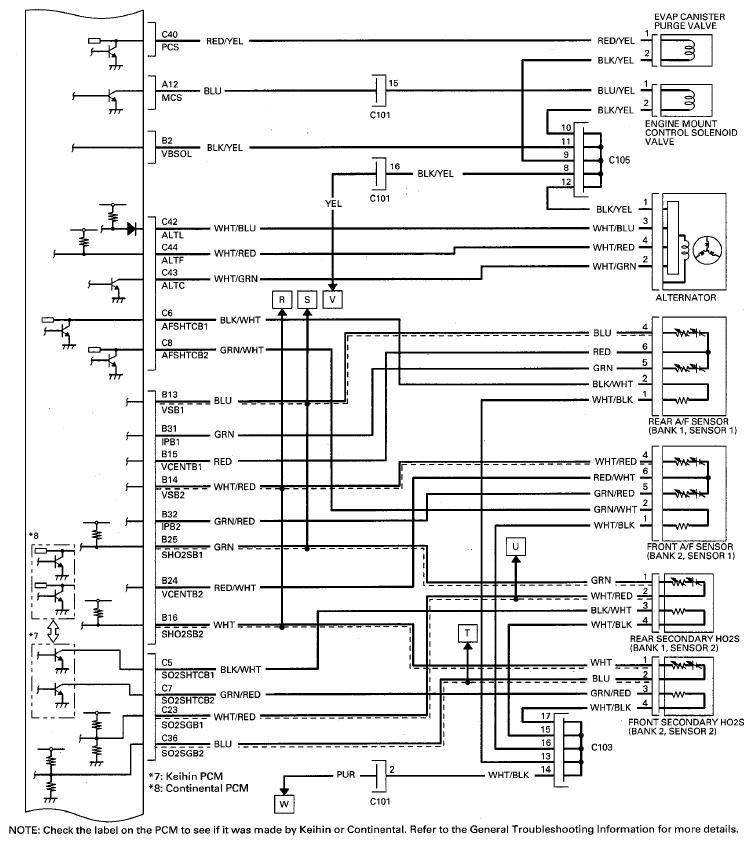

Fig 9: PCM Circuit Diagram (9 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: PCM Circuit Diagram (10 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: PCM Circuit Diagram (11 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

Fig 12: PCM Circuit Diagram (12 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: PCM Circuit Diagram (13 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: PCM Circuit Diagram (14 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
