Third Row Child Seat Tether Anchor Replacement

  1. Remove the rear trim panel (see step 2 under TRIM REMOVAL/INSTALLATION - PILLAR AREAS ).
  2. Remove the screws (A), and remove the third row child seat tether anchors (B).

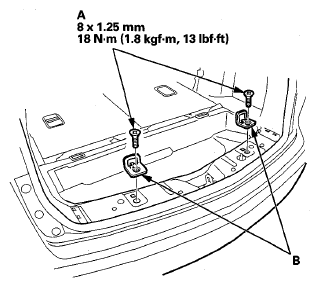

    Fig 1: Third Row Child Seat Tether Anchors And Screws With Torque Specifications
    G08054390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the anchor in the reverse order of removal, and apply medium strength liquid thread lock to the threads of the child seat tether anchor screws.
