Fuel Tank Pressure Sensor: Service and Repair

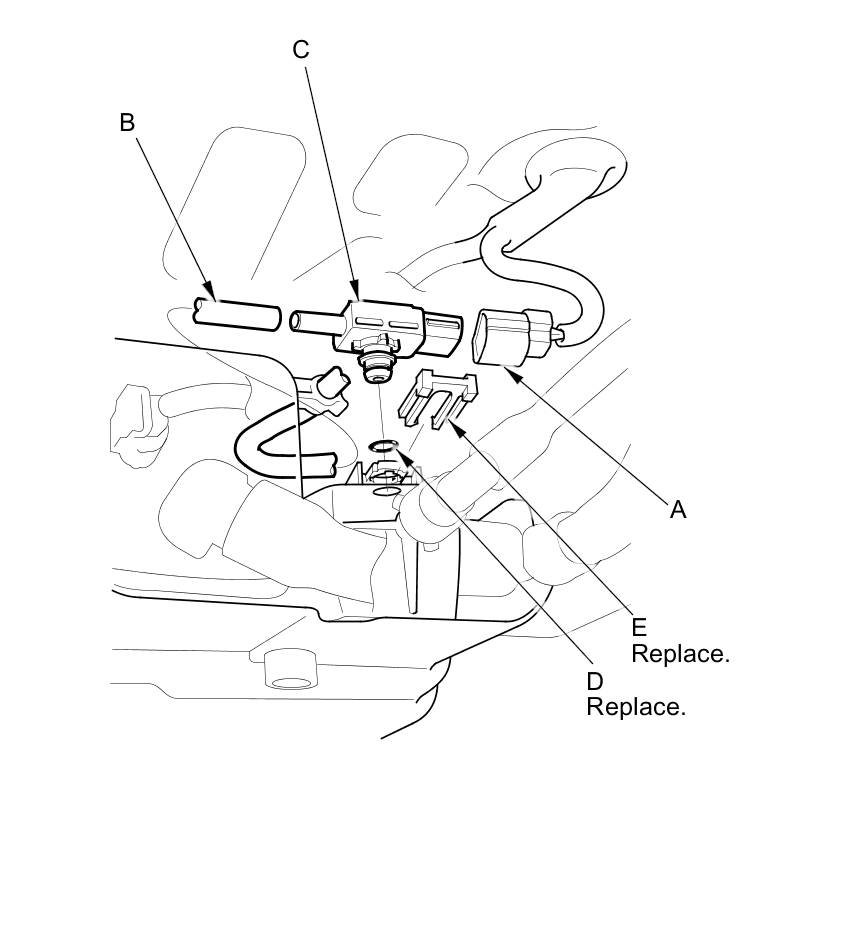

FTP Sensor Replacement

1. Raise the vehicle on a lift Service and Repair.

2. Disconnect the FTP sensor connector (A).





3. Disconnect the hose (B), then remove the FTP sensor (C).

4. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
