Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Switch Removal/Installation

1. Remove the rocker arm oil control valve Rocker Arm Oil Control Valve Removal/Installation.

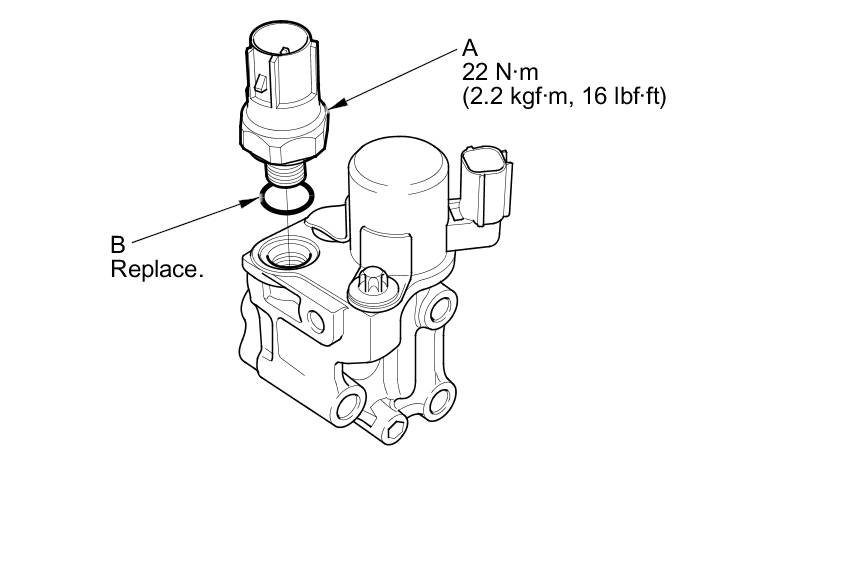

2. Remove the rocker arm oil pressure switch (A).





3. Install the parts in the reverse order of removal with a new O-ring (B).
